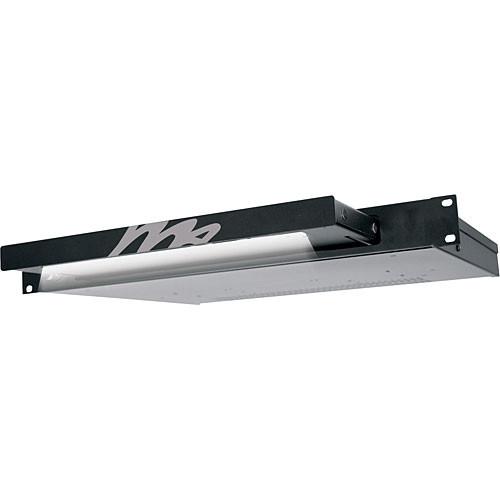

User Manual for Middle Atlantic LT-1R Rackmount Light Click to enlarge the picture
Contents of the user manual for the Middle Atlantic LT-1R Rackmount Light
- Product category: Lights & Accessories Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Lights & Accessories
|
User manual for the Middle Atlantic LT-1R Rackmount Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The flat black LT-1R Rackmount Light from Middle Atlantic is a unique solution for poorly lit rackmount setups. This 1U rackmount unit features a pull-out ambient light that can provide evenly distributed lighting to facilitate viewing all the components in your rack. The unit is designed to be installed in your rack above the other units you wish to view. When the retractable light tray is pulled out it illuminates the face of the other components below it.
The light itself consists of a dimmable LED light bar. LED lighting is known for its brightness, low-power consumption, and lack of ambient heat normally associated with incandescent lighting. The unit operates on a 120VAC/60Hz power supply. For even more flexibility, (2) 5V DC USB output ports have been included on the back of the unit for use with gooseneck work lights (LT-GN). These back ports afford the same lighting possibilities when working with connections in the back of your rack, an area that is often even more problematic in terms of lighting. This unit includes a UL-listed plug-in power supply. - Rackmount Lighting Solution
- This 1U rackmount unit features a pull-out ambient light that can provide evenly distributed lighting to facilitate viewing all the components in your rack.
- Dimmable LED Light
- The light itself consists of a dimmable LED light bar. LED lighting is known for its brightness, low-power consumption, and lack of ambient heat normally associated with incandescent lighting.
- USB Ports for Gooseneck Lights
- For even more flexibility, (2) USB output ports have been included on the back of the unit for use with gooseneck work lights (LT-GN).
UPC: 656747073175 In the Box Middle Atlantic LT-1R Rackmount Light Rackmount Light Power Supply Limited Three-Year Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic LT-1R Rackmount Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic LT-1R Specs | Finish | Flat black | | Construction | Steel | | Lighting | LED light bar | | Ports | x2 USB ports on rear panel | | Power Supply | 120VAC / 60Hz
Two rear USB 5 volt DC output ports for use with optional gooseneck LED light | | Dimensions (HxWxD) | 1-3/4 x 19 x 13.5" | | | | Package Weight | 10.55 lb | | Box Dimensions (LxWxH) | 21.6 x 13.7 x 3.8" |
