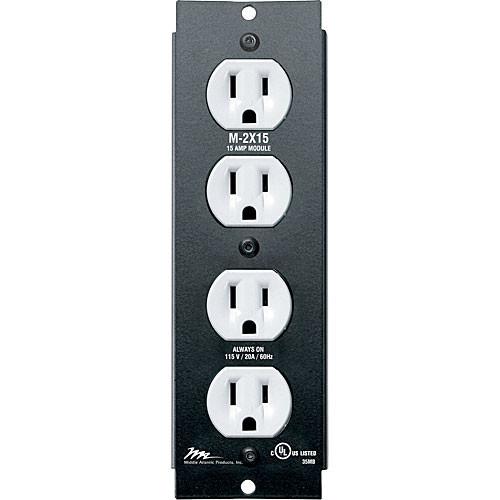

Product description This M-2X15 15A Switchable Power Module with (2) Circuits from Middle Atlantic is special module designed for use with MPR (Modular Power Raceway) systems from Middle Atlantic. This unit allows for quick and easy shop or field wiring of vertical power raceways.
The module is powered with 115VAC 60Hz input voltage. It is constructed of 18-gauge steel and sports a black powder-coat finish.
This model is designed for use at 15A and can be configured to work with one or two circuits. Moreover, the control is always on and features a JMS jumper. Note: This piece will not provide a fully functional solution without being integrated with other components from the MPR system. - Switchable Power Module for Modular Power Raceway
- This power module is designed for use the MPR Modular Power Raceway systems.
- Field Wiring
- The module has been designed to accommodate easy shop or field wiring of vertical power raceways.
- Configurable Circuits
- This unit can be configured to work with (1) or (2) circuits.
- Solid Construction
- This unit is constructed of 18-gauge steel, ensuring years of reliable use.
In the Box Middle Atlantic M-2X15 15A Switchable Power Module with (2) Circuits Power Module Limited Three-Year Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic M-2X15 15A Switchable Power Module with Circuits in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic M-2X15 Specs | Construction | 18-gauge steel | | Finish | Black powder coat | | Number of Outlets | x4 | | Power | 115VAC 60Hz input voltage
15A | | Circuits | x2
(Can be configured for use with one or two circuits) | | Dimensions (HxWxD) | 0.5 x 2.52 x 7.98" |
