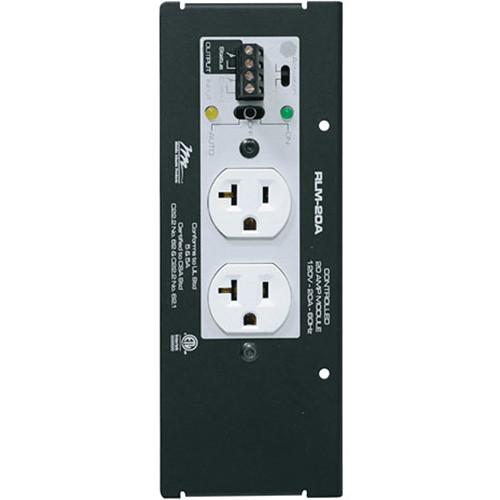

User Manual for Middle Atlantic MPR 20A Controlled Raceway Module with Series Protection Click to enlarge the picture
Contents of the user manual for the Middle Atlantic MPR 20A Controlled Raceway
- Product category: Cable & Power Management Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Cable & Power Management
|
User manual for the Middle Atlantic MPR 20A Controlled Raceway contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle Atlantic MPR 20A Controlled Raceway Module with Series Protection provides series-type, non-degrading surge protection to all modules integrated within the MPR raceway. The RLM-20A-SP, a Series Protection module, is designed to offer flexibility for protecting all connected equipment. - Field-configurable strip offers series type surge protection
- Provides Series Protection to all cascading modules in each circuit
- With local and remote control
- Module sits on top of raceway channel to allow circuit wiring between modules and unimpeded connection to the termination
- Currently installed "A" version MPR raceway systems can be outfitted with Series Protection modules
- Momentary or Maintained control selection switch
- Control switch: AUTO - OFF - ON (factory position OFF)
- Control status LED: Yellow LED indicates control switch is on AUTO
- Surge status: Provides remote notification of status
- Normally Open or Normally Closed control selection switch
- Circuit Breaker with reset switch
- Remote control terminal block
UPC: 656747215780 In the Box Middle Atlantic MPR 20A Controlled Raceway Module with Series Protection Limited 12-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic MPR 20A Controlled Raceway Module with Series Protection in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic RLM-20A-SP Specs | Maximum Load Capacity | 16 Amps | | AC Outlets | 2 x 5-20R | | Status Indication | LED and contact closure | | Control | Local and remote control | | Length | 12.0" (305 mm) | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 13.5 x 4.25 x 3.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
