Product description The MRK-4436-NVR-AB MRK Series 19" Configured Network-Video Recorder Enclosure from Middle Atlantic is a special enclosure kit that comes complete with all of the items necessary to support a professional network-video recorder setup. This is a fully welded steel rack with 44U capacity and a depth of 36". Its steel frame and 1/8" thick structural-steel internal braces provide a weight capacity of up to 2500 lbs. This enclosure is also seismic certified to protect up to 1000 lbs of essential equipment when used in conjunction with MRK-Z4 brackets.
This rack includes (2) pairs of cage-nut style rack rails and (1) pair of cage-nut style Z-Rail adapters. The kit also includes ganging hardware, a fully vented top panel, a fully perforated vented front door, a split rear door, a vertical lacer strip, (6) horizontal lacer bars, (12) cable-management straps, a power strip with cord, (2) brush grommets, leveling feet, and all mounting hardware.
This enclosure is gang-able, allowing you to expand your system at will by adding additional cabinets (to complete a ganged rack configuration add model MRK-4436-NVR with side panels). The rack can also be customized with a number of practical accessories items to meet your exact needs. - Network-Video Recorder Enclosure Kit
- This unit is a special enclosure kit that comes complete with all of the items necessary to support a professional digital-video recorder setup, including doors, vented panels, cable-management devices, and electrical hardware, among other items.
- Solid Construction
- All-steel construction and structural-steel braces guarantee exceptional strength and years of use with this unit.
- Seismic Certified
- Protects up to 1000 lbs of essential equipment when used in conjunction with MRK-Z4 brackets.
- No-Clog Rack-Rail Threads
- All rack rails are finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rack rails are labeled in EIA standard rack space increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rack screws save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- UL Listed
- This rack is UL (Underwriters Laboratories) Listed in the U.S. and Canada.
- Free Layout & Specifications Software
- RackTools free layout and specification software is included for effective system design help.

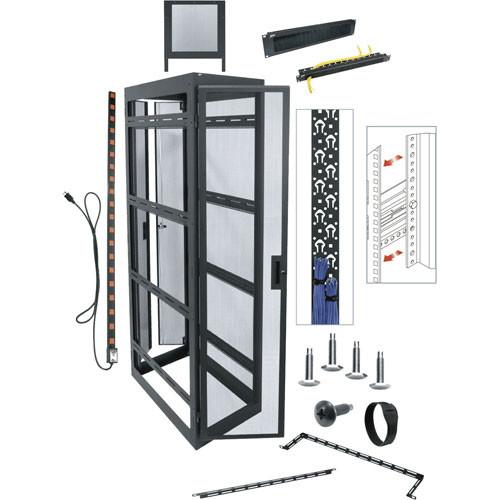

In the Box Middle Atlantic MRK-4436-NVR-AB MRK Series 19" Configured Network-Video Recorder Enclosure Rack Frame Ganging Hardware Vented Top Panel Perforated Front Door Split Rear Door 3-1/4" Wide Vertical Lacer Strip 6 x Lacer Bars 12 x 8" Cable Management Straps Thin power strip with cord (20 amp, 20 outlet) Brush Grommets (1U and 2U) Set of Leveling Feet 100 x 6mm Threaded Cage Nuts and Rack Screws 50 x 10-32 Threaded Cage Nuts and Rack Screws 4 x Cage-Nut Style Rack Rails (2 pairs, front and rear) 2 x Cage-Nut Style Z-Rail Adapters Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic MRK-4436-NVR-AB MRK Series 19" Configured Network-Video Recorder Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic MRK-4436-NVR-AB Specs | Construction | Welded steel frame and 1/8" thick structural-steel internal braces | | Finish | Black powder coat | | Shelf | None | | Cabinet | Accepts 19" Equipment (Width)
Useable Depth 33.6"
Capacity 44U (77.125") | | Mobility | Not specified by manufacturer | | Dimensions (HxWxD) | 83.125 x 22 x 36" | | Weight Capacity | 2500 lbs
(Seismic certified capacity up to 1000 lbs when used in conjunction with MRK-Z4 brackets) | | Weight | Not specified by manufacturer | | | | Package Weight | 199.0 lb | | Box Dimensions (LxWxH) | 89.0 x 39.0 x 27.0" |
