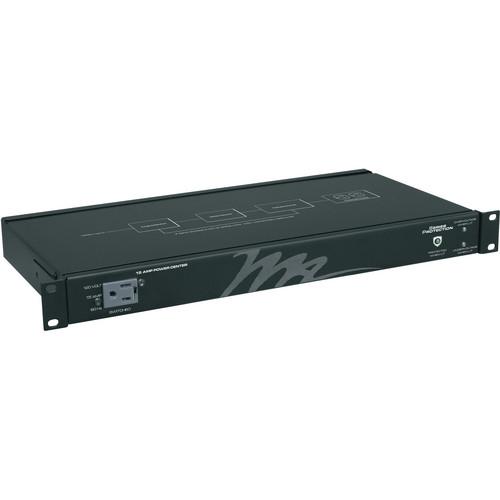

User Manual for Middle Atlantic PD-915R-SP 15A 9-Outlets 19" Full Rackmount Click to enlarge the picture
Contents of the user manual for the Middle Atlantic PD-915R-SP 15A 9-Outlets 19"
- Product category: Cable & Power Management Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Cable & Power Management
|
User manual for the Middle Atlantic PD-915R-SP 15A 9-Outlets 19" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The PD-915R-SP 15A 9-Outlets 19" Full Rackmount from Middle Atlantic is designed for power distribution with instantaneous surge elimination. It employs the patented Series Protection technology that includes a 9’ (2.7mm) 14/3 SignalSAFE power cord and enables it to respond more quickly to a surge event. This stand-alone unit has a rated capacity of 15A and operates on 120VAC at 60Hz current. It has both over and under voltage cut-off and automatically restores power once an event has passed. While the over voltage cut-off threshold does not exceed 135VAC, the under voltage cut-off threshold is not lower than 100VAC. Moreover, it also provides instantaneous protection for AV systems from damaging surges. - Non-sacrificial surge technology protects equipment from damage without contaminating system ground
- 100% MOV-free design is non-sacrificial and non-degrading
- Connected devices are automatically disconnected (protected) from sustained over & under input voltage
- Automatic recovery after both over / under voltage event minimizes system downtime (unlike devices that require hard reset after a surge event)
- Hardwired 15A at 120V in 19" (482.6mm) form factor
- Series protection technology for the RackLink power management system
- Series protection technology for safety and reliability
UPC: 656747195440 In the Box Middle Atlantic PD-915R-SP 15A 9-Outlets 19" Full Rackmount Limited 12-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic PD-915R-SP 15A 9-Outlets 19" Full Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic PD-915R-SP Specs | Chassis | Rackmount | | Input | 9.0' (2.7 m) SignalSAFE Cord | | Circuits | 1 | | Rated Amperage | Peak Load at 120 V: 15 A | | Output Type | Duplex on rear
Single on front | | Switch Type | Illuminated Combo Breaker (On / Off): Rear (with bar) | | Outlets | Total: 9
Rear: 8
Front: 1
Uncontrolled (switched or hardwired): 9 | | Protection | Surge: Series protection
Overload: Supplementary overload protector
Over / Under Voltage Notification LED: 2 LEDs (over voltage, under voltage, default Off) | | Voltage Tolerance | Measured Over / Under
Upper Limit Cutoff: 135 VAC (RMS)
Upper Limit Restore: 126 VAC (RMS)
Lower Limit Cutoff: 100 VAC (RMS)
Lower Limit Restore: 105 VAC (RMS) | | Dimensions (H x W x D) | 19.0 x 8.9 x 1.7" (482.6 x 226.0 x 43.1 mm) | | | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 22.25 x 13.38 x 4.0" |
