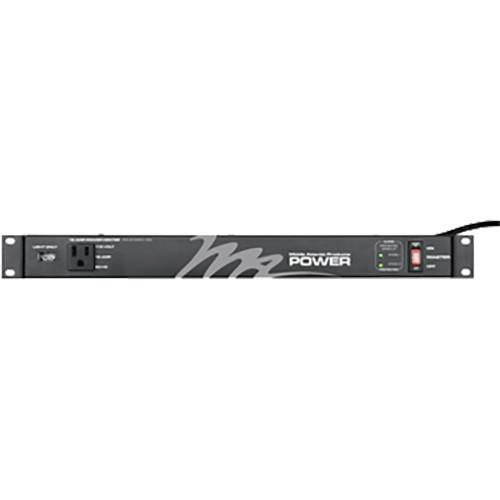

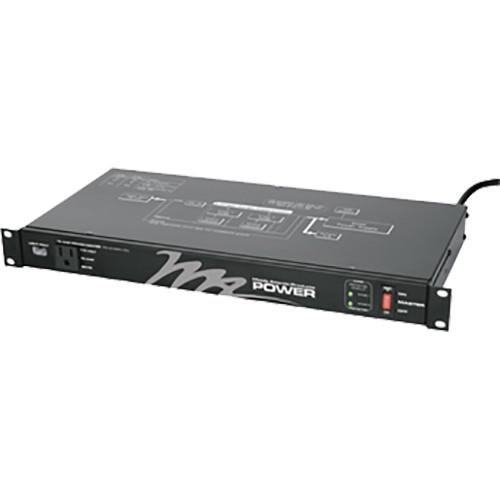

Product description This PD-915RV-RN Rackmount Power from Middle Atlantic is a rackmount power distribution unit that features both local and remote notification of surge suppression status. This unit include (8) rear outlets and (1) front outlet. The front panel also includes (2) LED status indicators, which show the level of protection provided by the unit's two-stage surge and spike suppression.
Surge suppression status can be delivered to any customer-supplied monitoring device. The unit's 9" depth facilitates accessing the vertically oriented 15-amp rear outlets. These outlets have also been spaced to accommodate plug-in power supplies. Its clean ground surge suppressor design will not pass noise contamination to the ground.

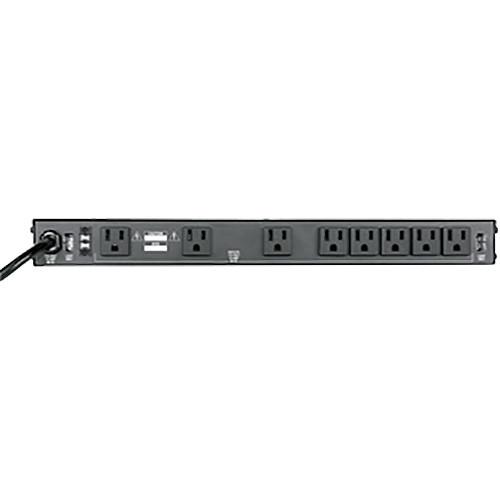

The back panel includes (2) USB ports to accommodate an LT-GN gooseneck LED light for added illumination of the rack. A 9' cord and an illuminated combination power switch/circuit breaker are also standard features. The power supply has a durable black powder-coat finish and occupies 1U of rack space. - Rackmount Power Supply
- This rackmount power distribution unit include (8) rear outlets and (1) front outlet.
- Local & Remote Notification
- It features both local and remote notification of surge suppression status.
- LED Indicators
- The front panel also includes (2) LED status indicators, which show the level of protection provided by the unit's two-stage surge and spike suppression.
- Integrate with Existing Monitoring Devices
- Surge suppression status can be delivered to any customer-supplied monitoring device.
- Ample Space
- The unit's 9" depth facilitates accessing the vertically oriented 15-amp rear outlets. These outlets have also been spaced to accommodate plug-in power supplies
- Clean Ground
- Its clean ground surge suppressor design will not pass noise contamination to the ground.
UPC: 656747076879 In the Box Middle Atlantic PD-915RV-RN Rackmount Power Power Supply Power Cord Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic PD-915RV-RN Rackmount Power in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic PD-915RV-RN Specs | Construction | Metal | | Finish | Black powder coat | | Power | Nominal line voltage: 120VAC
Maximum line current: 15 amps
Maximum allowable voltage: 125VAC (RMS)
Protection mode: Line to Neutral
Peak impulse current (8/20 micro seconds):
30,000 amps, one time
19,500 amps, two times within 5 minutes
7,000 amps, ten times within 2 minutes
Maximum clamping voltage: 545 volts @ 100 amps
Response time: Instantaneous (Less than 1 nanosecond)
EMI/RF Suppression: More than 20 db | | Dimensions (HxWxD) | 9 x 17-1/2 x 9-1/8" | | Weight | Not specified by manufacturer | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 22.3 x 13.5 x 3.8" |
