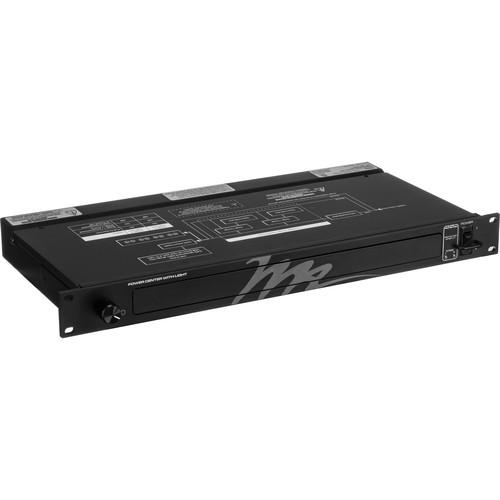

User Manual for Middle Atlantic PDLT-815RV-RN Rack Light with 15 Amp Power Distribution and Surge Suppression Status Notification Click to enlarge the picture
Contents of the user manual for the Middle Atlantic PDLT-815RV-RN Rack Light with
- Product category: Power Distributors & Conditioners Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Power Distributors & Conditioners
|
User manual for the Middle Atlantic PDLT-815RV-RN Rack Light with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This PDLT-815RV-RN Rack Light with 15 Amp Power Distribution and Surge Suppression Status Notification from Middle Atlantic is a special power supply designed to power and protect your system while providing illumination at the same time. Use this unit to add power outlets to your setup and improve visibility in your rack at the same time.
This unit features 15-amp power to (8) rear outlets, which have been spaced to accommodate plug-in power supplies. Its clean ground surge suppressor design will not pass noise contamination to the ground. Both remote and LED notification of surge suppression are available when protection is compromised.
It includes a retractable front light for component illumination that can be dimmed to adjust brightness. The rear panel features (2) USB ports for use with the optional LT-GN LED gooseneck work light. - Power & Illumination
- This unit is a special power supply designed to power and protect your system while providing illumination at the same time.
- 8 Convenient Outlets
- This unit features 15-amp power through (8) rear outlets, which have been spaced to accommodate plug-in power supplies.
- Front-Panel Light
- It includes a retractable front light for component illumination that can be dimmed to adjust brightness.
- Rear-Panel USB Ports
- The rear panel features (2) USB ports for use with the optional LT-GN LED gooseneck work light.
- Clean Ground
- Its clean ground surge suppressor design will not pass noise contamination to the ground.
UPC: 656747073083 In the Box Middle Atlantic PDLT-815RV-RN Rack Light with 15 Amp Power Distribution and Surge Suppression Status Notification Power Supply with Light Power Cord Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic PDLT-815RV-RN Rack Light with 15 Amp Power Distribution and Surge Suppression Status Notification in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic PDLT-815RV-RN Specs | Construction | Metal | | Finish | Black powder coat | | Power | Nominal line voltage: 120VAC
Maximum line current: 15 amps
Maximum allowable voltage: 125VAC (RMS)
Protection mode: Line to Neutral
Peak impulse current (8/20 micro seconds):
30,000 amps, one time
19,500 amps, two times within 5 minutes
7,000 amps, ten times within 2 minutes
Maximum clamping voltage: 545 volts @ 100 amps
Response time: Instantaneous (Less than 1 nanosecond)
EMI/RF Suppression: More than 20 db | | Dimensions (HxWxD) | 1-3/4 x 19 x 13-1/2" | | Weight | Not specified by manufacturer | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 21.6 x 13.7 x 3.6" |
