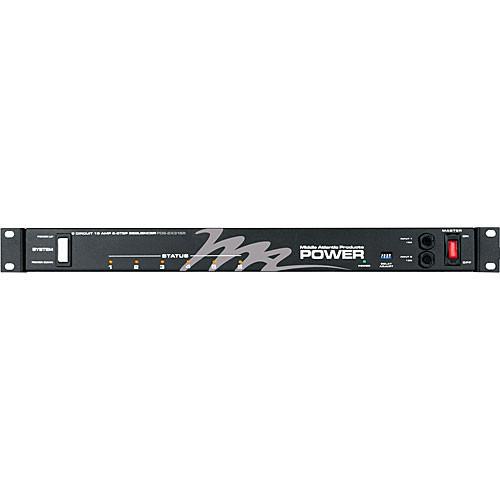

User Manual for Middle Atlantic PDS-2X315R 15-Amp Power Sequencing & Distribution Unit Click to enlarge the picture
Contents of the user manual for the Middle Atlantic PDS-2X315R 15-Amp Power Sequencing
- Product category: Cable & Power Management Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Cable & Power Management
|
User manual for the Middle Atlantic PDS-2X315R 15-Amp Power Sequencing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This PDS-2X315R 15-Amp Volt Power Sequencing & Distribution Unit from Middle Atlantic is a power unit that provides 6-step sequencing to (6) rear outlets. An adjustable start-time delay allows this unit to be daisy chained with up to (3) sequencers acting as a single unit. This configuration is facilitated by a connection block located on the unit's rear panel.
Front-panel controls and LED indicators can be used to set and monitor sequencing intervals. The front panel also features a combination power switch/circuit breaker. The rear terminal block connection will also permit remote control functionality.
This model features (2) 15A circuits and (6) NEMA 5-15R outlets. It also includes (2) NEMA 5-15P cord terminations. - Power Sequencing & Distribution
- This unit provides 6-step sequencing to (6) rear outlets.
- Daisy-Chain Configuration
- Up to (3) of these units can be daisy chained together to function as a single unit.
- Control & Monitoring
- This unit can be controlled and monitored via the interface and LEDs located on the front panel.
- Remote Control
- A block terminal on the rear panel permits remote control of the unit.
UPC: 656747012662 In the Box Middle Atlantic PDS-2X315R 15-Amp Power Sequencing & Distribution Unit Power Sequencing & Distribution Unit 2 x Power Cords Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic PDS-2X315R 15-Amp Power Sequencing & Distribution Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic PDS-2X315R Specs | Construction | Metal | | Finish | Black powder coat | | Circuits | (2) 15A | | Cord Termination | (2) NEMA 5-15P | | Start-Up Time | Adjustable Delay between Sequences:
.75, 1.5, 2.25, 7 sec | | Power Outlets | (6) NEMA 5-15R | | Dimensions (HxWxD) | 1.75 x 19 x 8.75"
1U rack height
9' power cords | | Weight | Not specified by manufacturer | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 21.0 x 9.0 x 4.0" |
