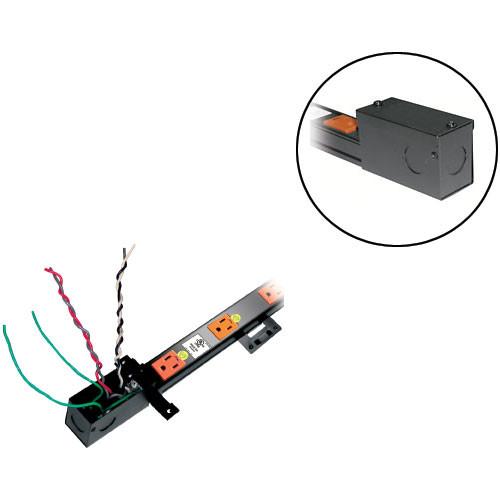

User Manual for Middle Atlantic PDT-2X1015T 15-Amp PDT Thin Power Strip with Outlets and Top-Mounted J-Box Click to enlarge the picture
Contents of the user manual for the Middle Atlantic PDT-2X1015T 15-Amp PDT Thin
- Product category: Cable & Power Management Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Cable & Power Management
|
User manual for the Middle Atlantic PDT-2X1015T 15-Amp PDT Thin contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The PDT-2X1015T 15-Amp PDT Thin Power Strip with (20) Outlets and Top-Mounted J-Box from Middle Atlantic is a power strip with a long thin footprint that has been designed to take up minimal space within your rack or enclosure. The unit is preassembled at the factory, making for easy installation in your setup. All mounting hardware is also included. This model is unique in its ability to provide isolated ground configurability.
It is designed for use in dry indoor locations only. This unit is a 15-amp model and comes with 12-gauge wiring, but it can also be attached to a 20-amp branch circuit. Although it is a dual-circuit model, it can also be configured to operate as a single-circuit unit if needed. Note: Each power strip in the PDT series has been designed for use with specific series of racks within the Middle Atlantic family of products. This model has been designed for use with products coded with the letter "P." Please check the code associated with your rack or enclosure to ensure compatibility. - Power Strip with Small Footprint
- This specially designed ultra-thin power strip has been designed to provide you with the functionality you need without taking up unnecessary space in your rack.
- Isolated Ground Configurability
- The strip is unique in its ability to provide isolated ground configurability.
- Easy Installation
- The strip comes preassembled with all the accessories you'll need to facilitate its installation.
- UL Listed
- This unit is UL Listed in the U.S. and Canada.
In the Box Middle Atlantic PDT-2X1015T 15-Amp PDT Thin Power Strip with (20) Outlets and Top-Mounted J-Box Power Strip with J-Box Set of Cable-Management Clips Mounting Hardware Limited Three-Year Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic PDT-2X1015T 15-Amp PDT Thin Power Strip with Outlets and Top-Mounted J-Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic PDT-2X1015T Specs | Operating Requirements | This power strip has been designed for use with Middle Atlantic products coded with the letter "P." Please check the code associated with your rack or enclosure to ensure compatibility. | | Construction | 16-gauge steel chassis
Plastic outlets | | Finish | Black powder-coat chassis
Orange outlets | | Circuit Configuration | x2 15A | | Termination | Top-mounted J-Box | | Power Outlets | x20 | | Dimensions (HxWxD) | 1 x 69.25 x 1.333" (strip dimensions)
2.075 x 3.5 x 1.575" (J-box dimensions)
72.75" (overall length) | | Weight | Not specified by manufacturer | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 74.0 x 3.0 x 2.0" |
