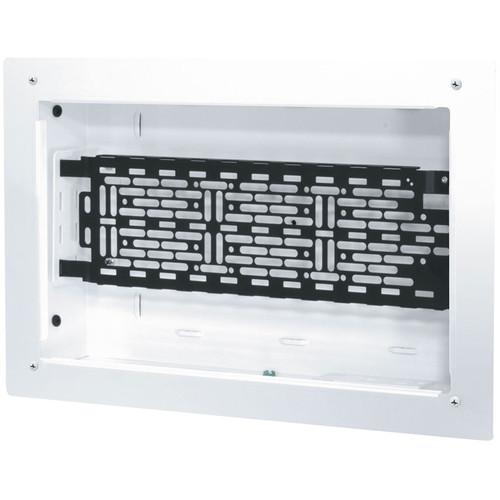

User Manual for Middle Atlantic PRX-WB-9X14-NP Proximity Series In-Wall Box Click to enlarge the picture
Contents of the user manual for the Middle Atlantic PRX-WB-9X14-NP Proximity Series In-Wall
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic PRX-WB-9X14-NP Proximity Series In-Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The 9 x 14" PRX-WB-9X14-NP Proximity Series In-Wall Box (Power Excluded) from Middle Atlantic is for convenient storage of AV system components recessed into a wall behind a visual system display. It features a patented Lever Lock tool-free small device mounting system that can be used to provide the flexibility needed for working in tight spaces. The Proximity Series in-wall box is designed for a clean finish and is suitable for use with VDM Series (Vision Display Mounts). It is built with knockouts to accommodate a single gang junction box of your choice. The box features 9 x 14" of space, a trim ring, and one Lever Lock 4" mounting plate—just add devices and wire them up. - The in-wall box is built for small device mounting flexibility with patented Lever Lock technology built-in
- Maximize space for storage of gear: four levels of mounting space offer unmatched configurability
- Quick installation and efficient servicing with included tool-free Lever Lock 4" plates
- UMS pattern simplifies mounting of small devices
- Certified to UL 2416 for safe, reliable installations
- Trim ring included to hide drywall cut and provide an aesthetic finish
- Knockouts included for high voltage power and wire management
- Includes knockout to accommodate a single gang junction box of your choice
- Compatible Proximity box covers available to restrict visibility and access to equipment
- Ready for components—includes the box, Lever Lock plates and trim ring—just add devices and wire them up
UPC: 656747341762 In the Box Middle Atlantic PRX-WB-9X14-NP Proximity Series In-Wall Box (Power Excluded, 9 x 14") Lever Lock Plates Trim Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic PRX-WB-9X14-NP Proximity Series In-Wall Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic PRX-WB-9X14-NP Specs | Plate Dimensions | Lever Lock: 3.86 x 13.61" / 9.80 x 34.57 cm | | Mounting Levels | 1 | | Adjustable Depth | Overall: From 3.7 to 4.2" / 9.4 to 10.7 cm | | Material of Construction | Phosphate pre-treated steel with a white powder-coat finish | | Dimensions (H x W x D) | 9.25 x 14.25 x 3.66" / 23.50 x 36.20 x 9.30 cm | | Weight | Not specified by manufacturer |
