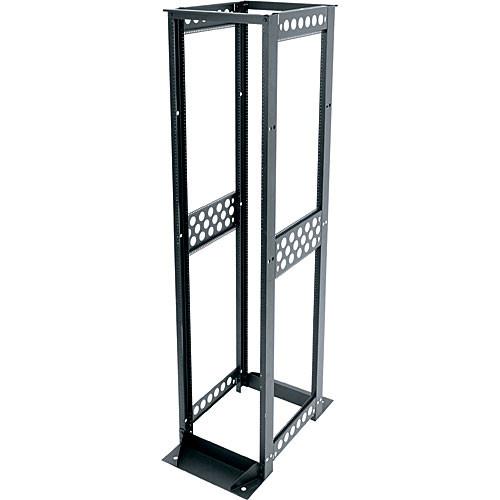

User Manual for Middle Atlantic R412-3830B R4 Series 30" Deep 38U Four-Post Open-Frame Rack Click to enlarge the picture
Contents of the user manual for the Middle Atlantic R412-3830B R4 Series 30"
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic R412-3830B R4 Series 30" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The R412-3830B R4 Series 30" Deep 38U Four-Post Open-Frame Rack from Middle Atlantic is a heavy-duty rack designed to accommodate deeper heavier components than two-post open-frame racks. This unit is ideal for servers, networking equipment, routers, and switches, among many other possibilities. This model features 3/16" thick extruded aluminum rails with 12-24 threads. The rack frame is made of 16-gauge steel.
Its open design promotes airflow and ensures that your equipment stays cool, thereby prolonging its useful life. The rack can also be ganged to additional four-post or two-post open-frame racks, making for virtually unlimited expansion possibilities.
The rack may be configured with the base on the inside to save rack space, or on the outside for increased stability. This unit will also accept 6, 9, or 12" cable ladders. It features numerous locations for mounting optional power units, cable-lacing strips, and additional rack rails, among many other separately available accessory items.
This rack will support up to 2500 lbs of equipment. Mounting hardware is included with the unit. - Accommodate Heavier & Deeper Equipment
- This rack has been designed to accommodate heavier and deeper equipment than a standard rack, including units such as servers, networking equipment, routers, and switches, among many other possibilities.
- Rack Rails
- The rack features 3/16" thick extruded aluminum rails with 12-24 threads.
- Optimum Airflow
- The rack's open design promotes optimum airflow, thereby lowering the operating temperature of your equipment and extending its useful life.
- Ganged Configuration
- This rack is capable of virtually unlimited expansion by ganging it to other -four-post and two-post open-frame racks.
- Customization
- This rack features a number of mounting areas to accommodate separately available accessory items that fit your exact needs.
- Capacity
- This unit will accommodate up to 2500 lbs of equipment.
UPC: 656747095559 In the Box Middle Atlantic R412-3830B R4 Series 30" Deep 38U Four-Post Open-Frame Rack 2 x Top Brackets 2 x Side Brackets 2 x Bottom Brackets (Base) 4 x Rack Rails (Two Pairs, Front and Back) 100 x Rack Screws & Nuts Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic R412-3830B R4 Series 30" Deep 38U Four-Post Open-Frame Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic R412-3830B Specs | Construction | 16-gauge steel (rack frame)
3/16" thick extruded aluminum (rack rails) | | Finish | Black powder coat | | Shelf | None | | Cabinet | 38U (66.5") Useable Height
30" Useable Depth
19" Width | | Mobility | None | | Dimensions (HxWxD) | 72.25 x 20.25 x 42" Overall Dimensions with Base Angles Outward
72.25 x 20.25 x 30.31" Overall Dimensions with Base Angles Inward
38" Distance Between Base Mounting Holes (Base Outward)
22.31" Distance Between Base Mounting Holes (Base Inward) | | Weight Capacity | 2500 lbs | | Weight | Not specified by manufacturer | | | | Package Weight | 66.0 lb | | Box Dimensions (LxWxH) | 74.5 x 13.5 x 7.0" |
