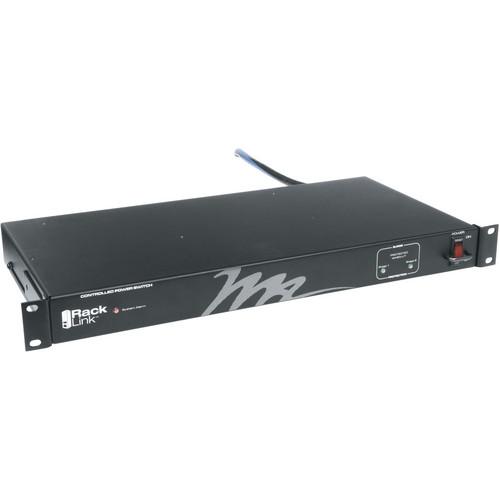

User Manual for Middle Atlantic RLNK-SW620R RackLink 15 A Rackmount Power Switch Click to enlarge the picture
Contents of the user manual for the Middle Atlantic RLNK-SW620R RackLink 15 A
- Product category: Cable & Power Management Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Cable & Power Management
|
User manual for the Middle Atlantic RLNK-SW620R RackLink 15 A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The RLNK-SW620R RackLink 15 A Rackmount Power Switch from Middle Atlantic is a practical web-enabled power management system that sets a new standard for A/V installations. Set it up in less than 5 minutes and it will monitor the power and temperature conditions of your system, log and alert you to any irregularities, and even reboot or take another action to correct problems on its own. It is easy to set up and operate, with an open architecture that integrates seamlessly with leading control systems-even your smart phone-and is compatible with 'cloud'-based services but is not dependent on them. - Easy set up, with simple plug & play installation
- Monitor and log numerous key environmental variables, including input voltage, load current, and local temperature
- Tracks and provides instantaneous notification of anomalous voltage, load current and temperature conditions
- Detailed logging of environmental variables and alerts
- Auto Ping monitors remote IP devices and automatically restarts if remote device stops responding
- Proactive and automatic fault resolution
- Local control of outlets via manual switches
- Integrated web server with either static or dynamic IP address for browser-based access and control
- Open-architecture serial communications protocol provides 100% cloud compliance, without cloud-dependence; and seamless integration into any RS-232 or TCP/IP-based architecture
- Extend control outside the rack to anywhere in the facility through dry contact outputs
- Data log for every monitored variable once every 5 minutes, and also immediately on every alert condition (surge status, threshold breaches, auto-ping no response, input voltage and connected load fluctuations)
- Data logs can be saved locally in CSV format, or extracted remotely via IP or RS-232
- Control systems can schedule specific commands to be sent to this device at set times
UPC: 656747179259 In the Box Middle Atlantic RLNK-SW620R RackLink 15 A Rackmount Power Switch 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic RLNK-SW620R RackLink 15 A Rackmount Power Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic RLNK-SW620R Specs | Form Factor | Rackmount | | Surge Protection | 2-stage | | Outlets | Total: 6
Controlled: 4
Un-switched:0 | | Dry Contact Switch | Total: 5
Controlled: 4
Surge status: 1 | | Web Server | Yes, Integrated | | Connection Type | 9' (2.74 m) SignalSafe cord (20 A) | | Line Voltage | Nominal: 120 VAC
Minimum: 80 VAC
Maximum: 140 VAC | | Maximum Current Rating | 20 A (Rated: 16 A) | | Alerts | Input Voltage
Low: 105 to 110 VAC
High: 123 to 128 VAC
Load Current
Minimum: 0 A
Maximum: 20 A
Temperature
Minimum: 0°F (-17.77°C)
Maximum: 140°F (60°C) | | Surge Suppression | Peak Impulse Current:
30,000 A, 1 time
19,500 A, 2 times within 5 minutes
7000 As, 10 times within 2 minutes
Maximum peak impulse current pulse as defined between line and neutral
Maximum multiple impulse current derated per spec
Protection Mode: Line to Neutral only; no ground contamination
Response Time: Less than 1 nanosecond
Surge Energy Dissipation: 711 J (10 / 100 micro seconds)
EMI / RF Suppression: > 20 dB calculated line to neutral, 100 kHz to 1 Mhz (based on nominal impedance) | | Event Action | AutoPing no response/recovery: Email and/or control outlet and/or dry contact
Over/under temperature: Email and/or control outlet and/or dry contact
Over/under input voltage: Email
Over/under load current: Email | | Communications | RS-232, TCP/IP, HTTP (integrated web server) | | Temperature | Operating: 32 to 140°F (0 to 60°C)
Maximum thermistor operating and measurement range: 0 to 302°F (-17.77 to 150°C) | | Humidity Range | 0 to 95% RH, non-condensing thermistor | | Dimensions | 19.25 x 9 x 1.75" (488.95 x 228.6 x 44.45 mm) | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 22.0 x 13.7 x 3.9" |
