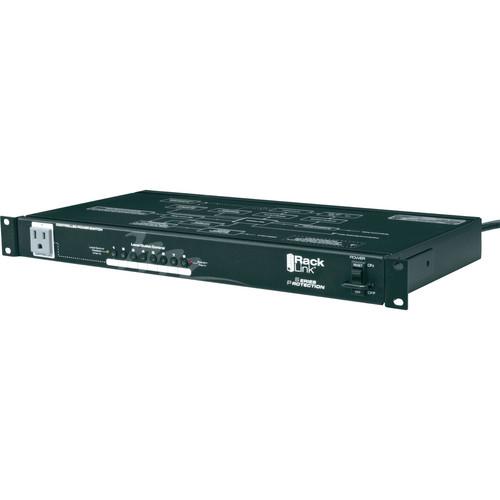

User Manual for Middle Atlantic RLNK-SW815R-SP RackLink Power Management System Click to enlarge the picture
Contents of the user manual for the Middle Atlantic RLNK-SW815R-SP RackLink Power Management
- Product category: Power Distributors & Conditioners Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Power Distributors & Conditioners
|
User manual for the Middle Atlantic RLNK-SW815R-SP RackLink Power Management contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The RLNK-SW815R-SP RackLink Power Management System from Middle Atlantic is a practical Web-enabled power management system for A/V installations. It will monitor the power and temperature conditions of your system, log, and alert you of any irregularities. It will even reboot or take another action to correct problems on its own. It is easy to set up and operate, as it comes with an open architecture that integrates seamlessly with leading control systems. It is also compatible with your smart phone and various 'cloud' based services but is not dependent on them.It is a remotely managed power unit that provides integrators with real-time visibility and control over any installation from anywhere in the world. Additionally, it is fully compliant with any control system or content aggregator. Drivers are available for third-party control systems. - Easy set up, with simple plug & play installation
- Monitor and log key environmental variables, including input voltage, load current and local temperature
- Tracks and provides instantaneous notification of anomalous voltage, load current, and temperature conditions
- Detailed logging of environmental variables and alerts
- Auto Ping monitors remote IP devices and services and can automatically restart an unresponsive network device
- Proactive & automatic fault resolution
- Local control of individual outlets via manual switches
- Integrated Web server for browser-based access and control of individual outlets and dry contact outputs
- Open-architecture serial communications protocol provides 100% cloud compliance, without cloud-dependence and seamless integration into any RS-232 or TCP/IP-based architecture
- Fully compliant with any control system or content aggregator
- Extend control outside the rack to anywhere in the facility through dry contact outputs
UPC: 656747195488 In the Box Middle Atlantic RLNK-SW815R-SP RackLink Power Management System Limited 3-Years Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic RLNK-SW815R-SP RackLink Power Management System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic RLNK-SW815R-SP Specs | | | Connection Type | 9.0' (2.7 m) SignalSAFE Cord (15A / 20A) | | Line Voltage | Nominal: 120 VAC | | Current (Maximum) | Peak Load: 15 A
Continuous Load: 12 A | | Threshold Range | Input Voltage Alert:
Low: 105 to 110 VAC
Load Current Alert:
Minimum: 0 A
Temperature Alert:
Minimum: 0°F | | | | Surge Protection | Series | | Current | Peak Impulse Current (8/20 micro seconds):
30,000 A, one time
19,500 A, two times within 5 minutes
7,000 A, ten times within 2 minutes
Maximum peak impulse current pulse as defined between line and neutral
Maximum multiple impulse current derated per spec | | Protection Modes | Line to Neutral | | Response Time | <1 nanosecond | | Dissipation | Surge Energy: 711 J (10 / 100 micro seconds) | | Others | EMI / RF Supression:
>20 dB Calculated Line to Neutral
100 kHz to 1 MHz (based on nominal impedance) | | Event Response | AutoPing No Response/Recovery: Email and/or Control Outlet and/or Dry Contact
Over / Under Temperature: Email and/or Control Outlet and/or Dry Contact
Over / Under Input Voltage: Email
Over / Under Load Current: Email | | | | Number of Outlets | No of Outlets: 8 | | Other | Number of Dry Contact Pairs:
Total: 5
Controlled: 2 | | Form Factor | Rackmount | | Communication | RS-232
TCP/IP
HTTP (integrated Web server) | | Dimensions | 1.75 x 19.25 x 9.00" (44.45 x 488.95 x 228.60 mm) | | | | Package Weight | 10.8 lb | | Box Dimensions (LxWxH) | 22.0 x 13.0 x 4.0" |
