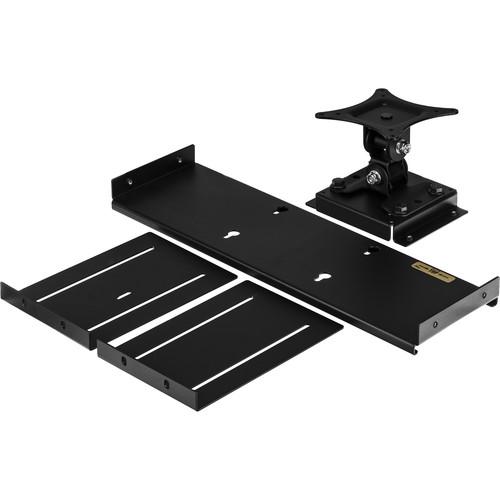

User Manual for Middle Atlantic RM-LCD-PNLK Rackmount Panel for LCD Monitors Click to enlarge the picture
Contents of the user manual for the Middle Atlantic RM-LCD-PNLK Rackmount Panel for
- Product category: Panels & Plates Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Panels & Plates
|
User manual for the Middle Atlantic RM-LCD-PNLK Rackmount Panel for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The RM-LCD-PNLK from Middle Atlantic is a 3 RU rackmount panel designed for mounting LCD monitors in equipment racks in studios, road cases, or server rooms. It accepts 15 to 19” monitors, and even some 20” models. It supports VESA 75 and 100 mounting patterns. A tilt mechanism allows up to 160° of tilt, and the front-to-back position is adjustable. The panel’s sturdy 16-gauge steel construction provides stability and durability. The weight capacity is 27 lb. - Used for mounting LCD screens onto a rack
- Integrates a tilt mechanism with a maximum tilt of 160°
- Accepts monitors up to 20" with an overall width of 17.38"
- Adjustable front-to-back position from 2 to 9" from the face of the rackrail
- Durable 16-gauge steel construction
UPC: 656747123887 In the Box Middle Atlantic RM-LCD-PNLK Rackmount Panel for LCD Monitors (3 RU, Tilting Plate) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic RM-LCD-PNLK Rackmount Panel for LCD Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic RM-LCD-PNLK Specs | Rack Units | 3 RU | | Mounting Pattern Compatibility | VESA 75
VESA 100 | | Maximum Monitor Size Supported | 20" / 508 mm
17.38" / 441.45 mm (maximum overall width) | | Maximum Tilt | 160° | | Weight Capacity | 27 lb / 12.2 kg | | Listings | RoHS
GREENGUARD | | Construction Material | 16-gauge steel | | Finish | Black powder-coat | | Dimensions (W x H x D) | 19.0 x 5.3 x 8.2" / 482.6 x 133.4 x 208.3 mm | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 20.6 x 7.4 x 6.4" |
