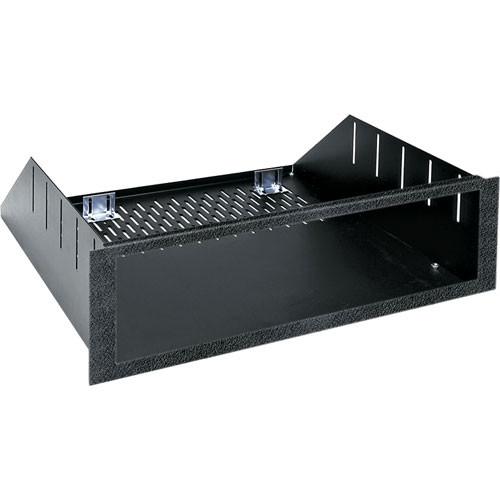

User Manual for Middle Atlantic RSH4S8-LCD 8U Custom Rackmount for LCD Monitor Click to enlarge the picture
Contents of the user manual for the Middle Atlantic RSH4S8-LCD 8U Custom Rackmount
- Product category: Shelves and Work Surfaces Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Shelves and Work Surfaces
|
User manual for the Middle Atlantic RSH4S8-LCD 8U Custom Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The RSH4S8-LCD 8U Custom Rackmount for LCD Monitor (Black Textured) from Middle Atlantic is a rackmount system designed to hold LCD monitors with screens up to 17". This unit features VESA 75 and VESA 100 mounting-hole patterns on its rear support-arm bracket that hold the monitor in place. This support arm also includes a round knockout cable pass-through to facilitate management of cables running from the back of the LCD display.
The unit installs into the rack with pre-drilled holes in the rackmount's rack ears. The fascia plate included with the unit covers the trim area surrounding the monitor, giving your installation a clean professional look. This model provides 8U of space and features a black textured finish. - Rackmount System for LCD Displays
- This custom system allows you to mount LCD displays with screens up to 17" in your rack.
- VESA 75 & VESA 100 Standards
- This unit features VESA 75 and VESA 100 mounting-hole patterns that hold the monitor in place.
- Cable Knockout
- A knockout cable pass-through is provided to facilitate management of cables running from the back of the LCD display.
- Fascia
- The fascia plate included with the unit covers the trim area surrounding the monitor, giving your installation a clean professional look.
UPC: 656747050039 In the Box Middle Atlantic RSH4S8-LCD 8U Custom Rackmount for LCD Monitor (Black Textured) 2 x Rack Ears Fascia Support Arm Bracket with Mounting Holes & Cable Pass-Through Support Bar Mounting Hardware Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic RSH4S8-LCD 8U Custom Rackmount for LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic RSH4S8-LCD Specs | Construction | Steel | | Finish | Black textured | | Dimensions | 8U height
Designed for use with 19" racks
Designed for use with LCD displays with screens up to 17" | | Weight | Not specified by manufacturer | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 22.0 x 18.0 x 3.5" |
