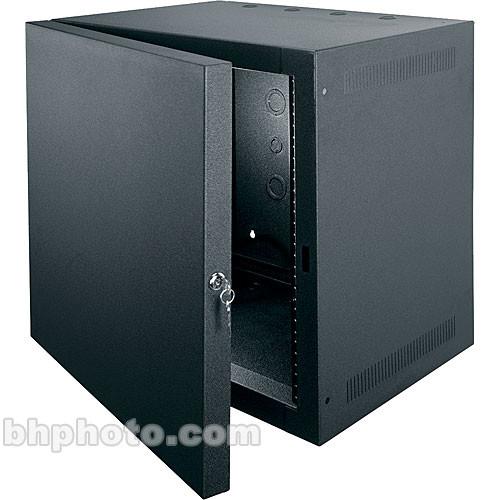

User Manual for Middle Atlantic SBX Series 19" Wall Mount Rack SBX-10 Click to enlarge the picture
Contents of the user manual for the Middle Atlantic SBX Series 19" Wall
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic SBX Series 19" Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This SBX Series 19" Wall Mount Rack SBX-10 is a convenient, 10U wall rack designed for 19" wide equipment. Its fully-welded construction with 18-gauge steel panels will support up to 100 lb. of equipment. Its locking, front door swings open 180° and deep rail-to-door clearance provides flexibility unlike flush door designs.
Generous vents ensure that equipment runs cool and numerous knockouts guarantee efficient cable management options. The rack features a large, pull-box sized laser knockout in the backpan. The top and bottom panels feature 1/2" and 3/4" electrical knockouts. And the rear panel contains 1/2", 3/4", 1", and 1-1/2" electrical knockouts.
Rackrails are constructed from 11-gauge, 10-32 threaded steel. And the rack itself is conveniently constructed in two pieces. The backpan can be mounted to the wall while the rack itself is preloaded with equipment, prior to installation. The cabinet itself is 14-1/2 inches deep and the door 1-1/2" deep. - Solid Construction
- Constructed from 18-gauge steel for a lifetime of use.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specifications Software
- RackTools free layout and specification software included for effective system design help.
- Quality Guaranteed
- Limited Lifetime Warranty to Original Purchaser.
UPC: 656747031038 In the Box Middle Atlantic SBX Series 19" Wall Mount Rack SBX-10 Rack Backpan Door Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic SBX Series 19" Wall Mount Rack SBX-10 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic SBX-10 Specs | Construction | Steel | | Finish | Black, powder-coat finish | | Shelf | None | | Cabinet | Accepts 19" Equipment (Width)
Depth 14" (Usable Depth)
Capacity 17-1/2" (10U) | | Mobility | not specified by manufacturer | | Dimensions (WxHxD) | 23-5/16 x 20-1/2 x 17" | | Weight Capacity | 100 lb. | | Weight | not specified by manufacturer | | | | Package Weight | 48.3 lb | | Box Dimensions (LxWxH) | 25.0 x 23.0 x 20.0" |
