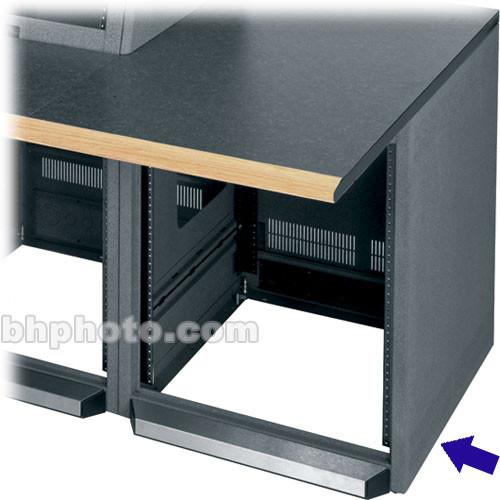

User Manual for Middle Atlantic SCRK SCQRK Series 19" Enclosure SCRK-1327BK Click to enlarge the picture
Contents of the user manual for the Middle Atlantic SCRK SCQRK Series 19"
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic SCRK SCQRK Series 19" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This Middle Atlantic SCRK / SCQRK Series 19" Enclosure SCRK-1327BK (Black) is a steel enclosure with 13U capacity that works equally well as a stand-alone cabinet or ganged together with other Middle Atlantic Products Surveillance and Monitoring consoles. Its fully welded construction and 16-gauge steel top, bottom, and side panels support up to 2,500 lb. of equipment. When used in conjunction with SC-Z4 brackets, this enclosure is seismic certified to protect up to 750 lb. of essential equipment.
Multiple lacing points, slotted rail brackets, and numerous knockouts provide an abundance of cable management options. The removable rear plates feature 1/2", 3/4", 1", and 1-1/2" electrical knockouts, while the top panel features a UHF/VHR antenna knockout. All laser knockouts for cable pass-through and ganging align with other consoles in the Middle Atlantic family of products. This model belongs to the "Convective" product line and features superior front and side ventilation to optimize heat convection.
Standard front and rear adjustable, 11-gauge, 10-32 threaded rackrails with numbered rackspace increments facilitate equipment mounting. A standard, locking, rear door is included for additional security (removable rear plates allow cable bundles to be easily passed over or under this door). Pick and choose from a wide range of accessories to customize your enclosure to meet your exact needs, such as the innovative, slide-out, rotating rack bay, which provides convenient rear access to equipment connections. - Solid Construction
- Welded construction and 16-gauge, steel panels ensure a lifetime of use
- Cable Management System
- Built-in cable lacing points and numerous knockouts allow you to organize any quantity of cables.
- Customization
- A variety of accessories allow you to personalize your rack to meet your exact needs
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specifications Software
- RackTools free layout and specification software included for effective system design help.
- UL Listed
- This product has been UL (Underwriters Laboratories) Listed in the United States and Canada.
- Seismic Certified
- This enclosure is seismic certified for protecting up to 750 lb. of essential equipment when used in conjunction with SC-Z4 brackets.
- Quality Guaranteed
- Limited Lifetime Warranty to Original Purchaser.
UPC: 656747048074 In the Box Middle Atlantic SCRK / SCQRK Series 19" Enclosure SCRK-1327BK (Black) Rack 4 x Rackrails (2 pairs, front and rear) Top Panel Bottom Panel 2 x Side Panels Locking Rear Door Assembly Hardware Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic SCRK SCQRK Series 19" Enclosure SCRK-1327BK in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic SCRK-1327BK Specs | Construction | Welded frame and 16-gauge steel panels | | Finish | Black, powder-coat finish | | Shelf | None | | Cabinet | Accepts 23" Equipment (Width)
Depth 24" (Usable Depth)
Capacity 22-3/4" (13U) | | Mobility | not specified by manufacturer | | Dimensions (WxHxD) | 22 x 27-3/4 x 27" | | Weight Capacity | 2500 lb.
(Seismic certified up to 750 lb. when used in conjunction with SC-Z4 brackets) | | Weight | not specified by manufacturer | | | | Package Weight | 92.0 lb | | Box Dimensions (LxWxH) | 36.0 x 30.0 x 27.0" |
