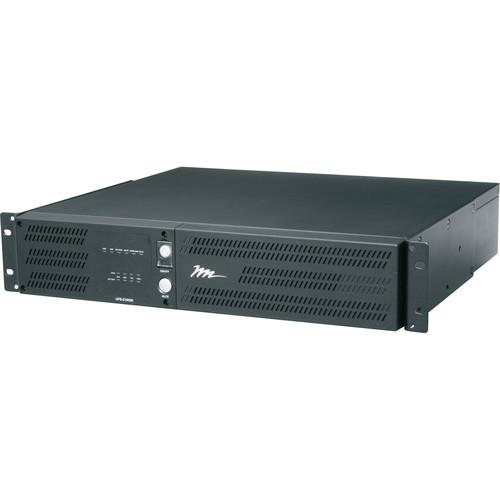

User Manual for Middle Atlantic Select Series Uninterruptible Power Supply Click to enlarge the picture
Contents of the user manual for the Middle Atlantic Select Series Uninterruptible Power
- Product category: Cable & Power Management Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Cable & Power Management
|
User manual for the Middle Atlantic Select Series Uninterruptible Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Select Series UPS Backup Power from Middle Atlantic fits into a 2RU rackspace and has a capacity of 2200 volts to power your items. The unit features automatic voltage regulation with a boost only and operates on a 120 VAC/60 Hz current. The outlet bank allows for system reboots and features priority outlets for ensuring maximum run time of critical components and non-critical outlets for load shedding. A 10' power cord is included, and the unit has a surge suppression that utilizes a clean line-to-neutral design to avoid passing noise contamination. A power switch, mute button, and LED status indicators are located on the front of the unit for warning indicators and status notifications. If needed, the battery pack can be replaced via the front panel, and if desired, remote monitoring and power control is available after installing an IP card. - Simulated sine wave output waveform
- Non-critical load shedding
- Surge protection and EMI filtering
- Automatic voltage regulation (AVR)
- Audible alarms for battery status
- Warning indicators via LED display for power status and faulty connections
- Bank control of outlets for system reboot
- Auto-charger and auto-restart
- Replaceable battery via front panel
- UL listed in US and Canada, RoHS compliant
In the Box Middle Atlantic Select Series Uninterruptible Power Supply (2RU, 2200VA) 2 x Rack Ears Mounting Hardware Rackmount Handles EPO Cable USB Cable Limited 2-Year Warranty on Battery Limited 3-Year Warranty on Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic Select Series Uninterruptible Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic UPS-S2200R Specs | Capacity | 2000 V, 1320 W | | Rack Size | 2RU | | Input Voltage Range | 90 to 140 VAC | | Input Frequency Range | 60 Hz ±3 Hz (auto-sensing) | | Input Plug Type | NEMA 5-20P 10.0' / 3.0 m | | On-Battery Output Voltage | Simulated sine wave at 120 VAC ±10% | | On-Battery Output Frequency | 60 Hz ±1% | | Automatic Voltage Regulation (AVR) | Boost only (with input voltage less than 100 VAC) | | Transfer Time | 8 ms (typical) | | Overload Protection | Utility: Circuit breaker
Battery: Internal current limiting | | Surge Protection and Filtering | Single mode, L-N | | Lighting / Surge Protection | 1840 joules | | Outlets | 8 x NEMA 5-20R | | Battery Type | 4 x 12 V / 9.0 AH | | Runtime | Full Load: 4 (estimated)
Half Load: 13 (estimated) | | Operating Temperature & Humidity | 32 to 104°F / 0 to 40°C
0 to 95%, non-condensing | | Dimensions | 17.1 x 3.5 x 15.3" / 43.3 x 8.9 x 38.7 cm | | Weight | 52.7 lb / 23.9 kg | | | | Box Dimensions (LxWxH) | 24.0 x 21.5 x 10.5" |
