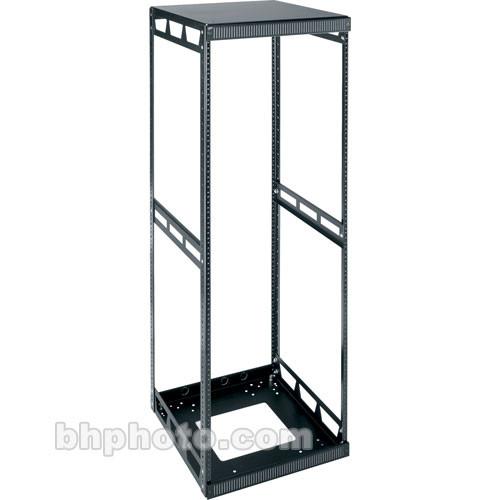

User Manual for Middle Atlantic Slim 5 Series 19" Equipment Rack 5-37 Click to enlarge the picture
Contents of the user manual for the Middle Atlantic Slim 5 Series 19"
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic Slim 5 Series 19" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This Middle Atlantic Slim 5 Series 19" Equipment Rack 5-37 with black, powder-coat finsih ships knocked down via UPS to lower delivery costs, but comes complete with all hardware for quick assembly. A bolt-together design and mechanically interlocking corners guarantee exceptional strength and years of use. Its solid frame construction and heavy-duty steel top and bottom support 400 lb. of equipment with capacity of up to 37U.
Front and rear, fixed-position, 11-gauge threaded, 10-32 rack rails come standard with this model. Also included are 1/2" and 3/4" EKOs (electrical knock outs) on the top and bottom rear for efficient cable managment. Ample opening on the bottom of the rack offers additional flexibility with cables and venting.
Gang this rack together with or without optional cable chase for unlimited growth potential in your set up. Pre-punched holes allow you to add optional casters or leveling feet. This model has been UL Listed (Underwriter Laboratories, Inc.) in the United States and Canada. - Solid Construction
- All-steel construction, bolt-together design, and mechanically locking corners guarantee exceptional strength and years of use.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- UL Listed
- Tested and certified by United Laboratories, Inc. (UL) in the United States and Canada.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- EKOs (electrical knock outs)
- New knockout plates on all A/V racks now accept wireless antennas. EKOs on top and bottom rear facilitate cable management.
- Free Layout & Specification Software
- RackTools free layout and specification software included for effective system design help.
In the Box Middle Atlantic Slim 5 Series 19" Equipment Rack 5-37 4 x Rack Rails (2 pairs, front & rear) Top Panel Bottom Panel (with opening) Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic Slim 5 Series 19" Equipment Rack 5-37 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic 5-37 Specs | Construction | Steel
Bolt-Together Design
Mechanically Locking Corners | | Finish | Black, powder-coat finish | | Shelf | None | | Cabinet | Accepts 19" Equipment (Width)
Depth 20"
Capacity 64-3/4" (37U) | | Mobility | Not specified by manufacturer | | Dimensions (HxWxD) | 68-1/2 x 19 x 20" | | Weight Capacity | 400 lbs | | Weight | Not specified by manufacturer | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 70.0 x 23.0 x 22.0" |
