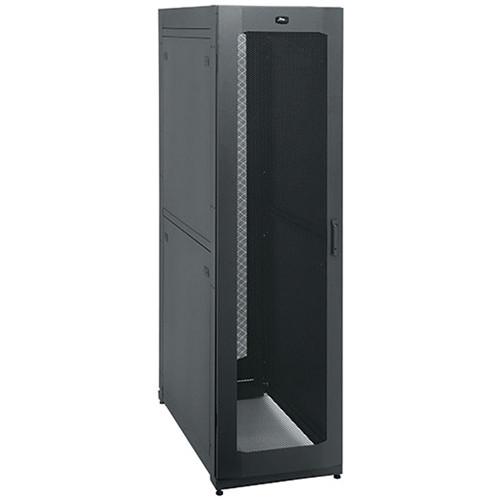

Product description The 42-rack SNE Series Hybrid Security Network Enclosure with Top Active Ventilation from Middle Atlantic is a 24x36" Security Network Enclosure configured for hybrid security systems consisting of a mix of analog and digital equipment and cabling. It accommodates small devices including encoders, power supplies, and access control systems on the patented Zero-U Tool-Free Lever Lock system. Cooling is provided via top active ventilation; a fan top with proportional speed thermostatic control provides 660 CFM of ventilation. The enclosure is equipped with 42 rack spaces, a 70% open-area vented front door, a solid split door, a pair of split flush mount locking side panels, two vertical 10" wide Lever Lock accessory mounting plates, one 6" wide vertical wire grid lace, two pairs of tapped 10-32 adjustable rails, and a pair of four-space cage-nut adapters. -
- Lever Lock compatible
- Includes 2 vertical 10" wide Lever Lock accessory mounting plates
- Configured for top active ventilation
- Includes 660 CFM fan top with proportional thermostatic controller
- Includes 70% open front door and solid top
- Includes one piece of 6" wide vertical wire grid lace
- Includes a pair of split flush mount locking side panels
- Includes 2 pairs of adjustable 10-32 tapped rack rails
- Includes four-space cage-nut adapters (pair)
UPC: 656747207822 In the Box Middle Atlantic SNE 42-Rack 24x36" Hybrid Security Network Enclosure w/Top Active Ventilation 6" Wide Vertical Wire Grid Lace Pair of Split Flush Mount Locking Side Panels 2 x Pair of Adjustable 10-32 Tapped Rack Rails Four-Space Cage-Nut Adapter (Pair) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic SNE 42-Rack 24x36" Hybrid Security Network Enclosure w Top Active Ventilation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic SNE24H-4236-A1 Specs | General | Gangable: Yes
Finish type: black powder coat
UL standards tested: UL2416
Component type: active
Rack rail type: 10-32
UL load capacity: 3,000 lb (1,361 kg)
Material: steel
Mounting: horizontal
| | Airflow | 660 CFM | | Rack Units | 42 | | Certifications | RoHS
Greenguard
UL Listing No: E313734
| | Dimensions | 24 x 37.15 x 79.52" (61 x 94.36 x 201.98 cm)
Usable Depth: 32.48" (82.50 cm)
Usable Height: 73.5" (186.7 cm)
Capacity weight (US): 12,000 lb (5,443 kg) | | | | Package Weight | 338.0 lb | | Box Dimensions (LxWxH) | 86.0 x 42.0 x 31.0" |
