User Manual for Middle Atlantic SNE 42-Rack 27x36" Digital Security Network Enclosure w Passive Cooling Click to enlarge the picture
Contents of the user manual for the Middle Atlantic SNE 42-Rack 27x36" Digital
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic SNE 42-Rack 27x36" Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|

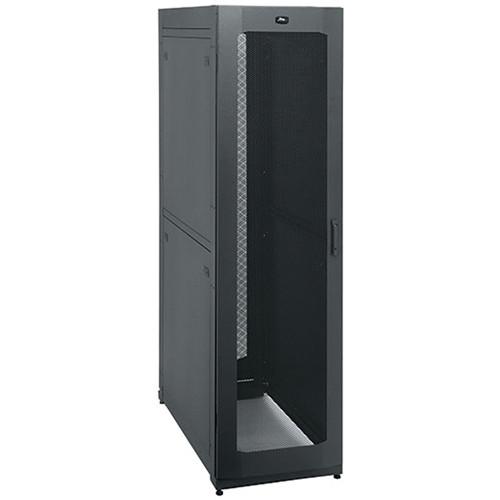

Product description The 42-rack SNE Series Digital Security Network Enclosure from Middle Atlantic is an advanced 27x36" security rack enclosure featuring front to rear passive cooling. It is purpose-built and was designed to meet the specific requirements of digital (IP based) security systems consisting of high-density cabling, network equipment, and servers. Optional Tool-Free Lever Lock system accommodates small devices including encoders, power supplies, and Access Control Systems. The enclosure is equipped with a 70% open area vented front door, a pair of split flush mount locking side panels, 2 pairs of adjustable cage-nut rack rails (including 6mm hardware), 42 rack spaces, 100 6mm cage-nuts/rack screws, a 70% open area split rear door and a solid top with brush cable pass-through. It is Lever Lock compatible and accepts all Lever Lock vertical 21" accessories. -
- Lever Lock compatible (accepts all 21" vertical accessories)
- Configured for passive cooling
- 70% open front door and 70% open area split rear door
- Solid top with brush cable pass-through
- Includes a pair of split flush mount locking side panels
- Includes 2 pairs of adjustable cage-nut rack rails
- Includes 100 6mm cage nuts and rack screws
UPC: 656747208058 In the Box Middle Atlantic SNE 42-Rack 27x36" Digital Security Network Enclosure w/Passive Cooling (Front to Rear) Pair of Split flush Mount Locking Side Panels 2 x Pair of Adjustable Cage-Nut Rack rail 100 x 6mm Cage Nuts 100 x Rack Screws Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic SNE 42-Rack 27x36" Digital Security Network Enclosure w Passive Cooling in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic SNE27D-4236-P1 Specs | General | Gangable: Yes
Finish type: black powder coat
UL standards tested: UL2416
Component type: passive
Rack rail type: cage nut
UL load capacity: 3,000 lb (1,361 kg)
Material: steel
Mounting: horizontal
| | Rack Units | 42 | | Certifications | RoHS
Greenguard
UL Listing No: E313734
| | Dimensions | 24 x 37.15 x 79.52" (61 x 94.36 x 201.98 cm)
Usable Depth: 32.48" (82.50 cm)
Usable Height: 73.5" (186.7 cm)
Capacity weight (US): 12,000 lb (5,443 kg) | | | | Package Weight | 331.0 lb | | Box Dimensions (LxWxH) | 86.0 x 42.0 x 31.0" |
