User Manual for Middle Atlantic SNE 42-Rack 30x36" Hybrid Security Network Enclosure w Rear Active Ventilation Click to enlarge the picture
Contents of the user manual for the Middle Atlantic SNE 42-Rack 30x36" Hybrid
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic SNE 42-Rack 30x36" Hybrid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|

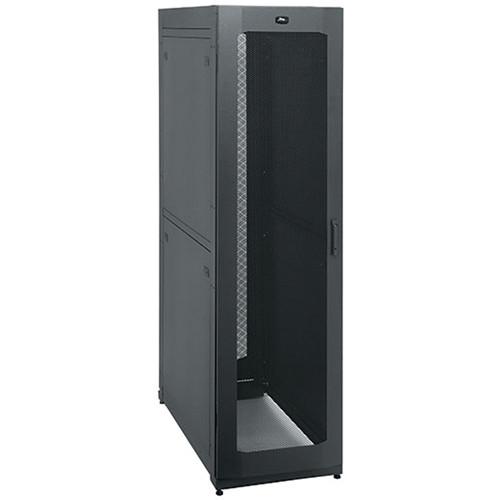

Product description The 42-rack SNE Series Hybrid Security Network Enclosure with Rear Active Ventilation from Middle Atlantic is a 30x36" Security Network Enclosure configured for hybrid security systems consisting of a mix of analog and digital equipment and cabling. It accommodates small devices including encoders, power supplies, and access control systems on the patented Zero-U Tool-Free Lever Lock system. Cooling is provided via rear active ventilation, located in the solid split rear door with eight 6" fans, for a total of 1,760 CFM active ventilation. The enclosure is equipped with 42 rackspaces, a 70% open-area vented front door, a solid split door, solid top, a pair of split flush mount locking side panels, two vertical 10" wide Lever Lock accessory mounting plates, one 6" wide vertical wire grid lace, two pairs of tapped 10-32 adjustable rails, and a pair of four-space cage-nut adapters. -
- Lever Lock compatible
- Includes 2 vertical 10" wide Lever Lock accessory mounting plates
- Configured for rear active ventilation
- Includes 1,760 CFM split fan rear door with eight 6" fans, expandable
- Optional proportional door fan controller (FC-CFRD, not included)
- Includes 70% open front door and solid top
- Includes one piece of 6" wide vertical wire grid lace
- Includes a pair of split flush mount locking side panels
- Includes 2 pairs of adjustable 10-32 tapped rackrails
- Includes a pair of four-space cage-nut adapters
UPC: 656747208379 In the Box Middle Atlantic SNE 42-Rack 30x36" Hybrid Security Network Enclosure w/Rear Active Ventilation 6" Wide Vertical Wire Grid Lace Pair of Split Flush Mount Locking Side Panels 2 x Pair of Adjustable 10-32 Tapped Rackrails Four-Space Cage-Nut Adapter (Pair) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic SNE 42-Rack 30x36" Hybrid Security Network Enclosure w Rear Active Ventilation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic SNE30H-4236-A2 Specs | General | Gangable: Yes
Finish type: black powder coat
UL standards tested: UL2416
Component type: active
Rackrail type: 10-32
UL load capacity: 3,000 lb (1,361 kg)
Material: steel
Mounting: horizontal
| | Airflow | 1760 CFM | | Rack Units | 42 | | Certifications | RoHS
Greenguard
UL Listing No: E313734
| | Dimensions | 30 x 37.15 x 79.52" (76.20 x 94.36 x 201.98 cm)
Usable Depth: 32.48" (82.50 cm)
Usable Height: 73.5" (186.7 cm)
Capacity weight (US): 12,000 lb (5,443 kg) | | | | Package Weight | 386.0 lb | | Box Dimensions (LxWxH) | 86.0 x 42.0 x 31.0" |
