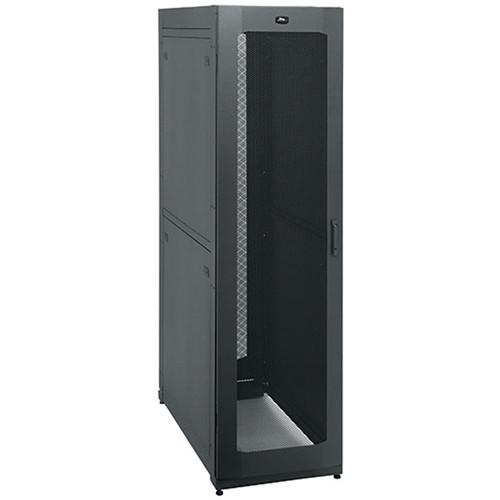

User Manual for Middle Atlantic SNE30D-4536-P1 SNE Series Rack, Click to enlarge the picture
Contents of the user manual for the Middle Atlantic SNE30D-4536-P1 SNE Series Rack,
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic SNE30D-4536-P1 SNE Series Rack, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The SNE30D-4536-P1 SNE Series Rack from Middle Atlantic is a 45 rack space, fully configured Security Network Enclosure with passive ventilation for data centers with its 70% open area vented front door, and includes a pair of split, flush mounted, locking side panels. The rack includes 2 pair of adjustable cage-nut rack rails, including hardware. The SNE30D-4536-P1 is Lever Lock compatible, accepting all Lever Lock, vertical, 21" accessories. It is configured for digital, IP based, security systems consisting of high-density cabling, network equipment, and servers.
The SNE rack is 30" wide with an overall depth 36" and supplies 45 rack-spaces. The SNE30D-4536-P1 utilizes front to rear passive cooling and features a 70% open area split rear door as well, and a solid top with brush cable pass-through.
An optionally purchased Tool-Free Lever Lock system accommodates small devices including encoders, power supplies, and Access Control Systems. - Configured for passive front-to-back cooling
- Black e-coat powder coat finish
- Includes 70% open front door and 70% open area split rear door
- Includes solid top with brush cable pass-through
- Includes 2 pair of adjustable cage-nut rack rails
- UL Standards Tested: UL2416,
Greenguard - Lever Lock compatible (accepts all 21" vertical accessories)
UPC: 656747208461 In the Box Middle Atlantic SNE30D-4536-P1 SNE Series Rack, (45 RU) 2 x Pair of Adjustable Cage-Nut Rack Rails 100 6mm Cage Nuts and Rack Screws Limited Lifetime warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic SNE30D-4536-P1 SNE Series Rack, in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic SNE30D-4536-P1 Specs | Capacity (Maximum) | 12,000 lb (5,443 kg) Static load capacity
3,000 lb (1,361 kg) UL listed load capacity
1,600 lb (726 kg) with casters for positioning into place | | Material of Construction | Steel | | Usable Depth | 32.48" (85.50 cm) | | Usable Height | 78.7" (200.0 cm) | | Dimensions (D x H x W) | 37.15 x 84.77 x 30.0" (94.36 x 215.36 x 76.20 cm) | | | | Package Weight | 334.0 lb | | Box Dimensions (LxWxH) | 91.0 x 42.0 x 31.0" |
