User Manual for Middle Atlantic SR-24-28 SR Series Pivoting Rack Click to enlarge the picture
Contents of the user manual for the Middle Atlantic SR-24-28 SR Series Pivoting
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic SR-24-28 SR Series Pivoting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|

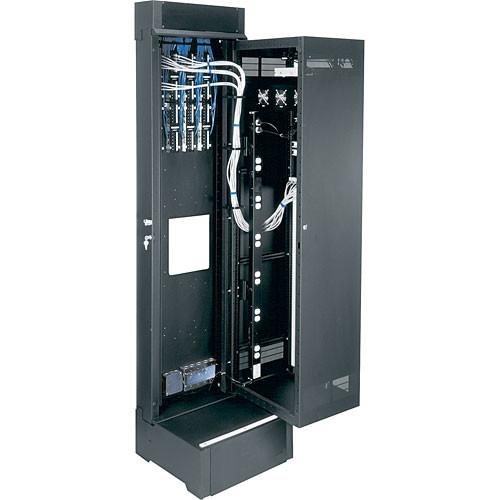

Product description The SR-24-28 SR Series Pivoting Rack from Middle Atlantic is a fully welded steel rack with 24U capacity and a depth of 28". This unique rack is designed for flush mounting against a wall. The components in the rack remain hidden and protected by a pivoting door, which can be opened at any time to gain instant access to your equipment. A zero-clearance latch on the door saves valuable wall space by allowing wall racks to be placed side by side, in a corner, or in practically any other location without worries about side-clearance issues. Moreover, a low-friction wear strip on the bottom of the rack facilitates opening and closing the door.
The rack will support up to 500 lbs of equipment and the bottom cable-entry platform supports the entire weight of the rack on the floor. Its back pan features a large laser knock-out panel and will accommodate up to (4) 89-D brackets, (4) 1900 boxes, or (1) Raco 3-gang box when used with an optional sub plate. The rack features a black textured powder-coat finish and is UL listed in the United States and Canada. - Solid Construction
- All-steel construction guarantees exceptional strength and years of use with this unit.
- Weight Capacity
- It will support up to 500 lbs of equipment.
- No-Clog Rack-Rail Threads
- All rack rails are finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rack rails are labeled in EIA standard rack space increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Grounding/Bonding Studs
- Grounding/bonding studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- UL Listed
- This rack is UL (Underwriters Laboratories) Listed in the U.S. and Canada.
- Free Layout & Specifications Software
- RackTools free layout and specification software is included for effective system design help.
- Knockouts
- Electrical knockouts on the back pan can easily be removed to pass cables.
UPC: 656747079146 In the Box Middle Atlantic SR-24-28 SR Series Pivoting Rack Rack Frame Set of Rack Rails Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic SR-24-28 SR Series Pivoting Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic SR-24-28 Specs | Construction | Welded steel frame and 1/8" thick laser-cut corner braces
14-gauge steel top and base
16-gauge steel center section and back pan | | Finish | Black textured powder coat | | Cabinet | Accepts 19" equipment (width)
Useable depth 26"
Capacity 24U (42") | | Dimensions (HxWxD) | 62.75 x 23.5 x 28" | | Weight Capacity | 500 lbs | | Weight | Not specified by manufacturer | | | | Package Weight | 189.0 lb | | Box Dimensions (LxWxH) | 95.0 x 56.0 x 35.0" |
