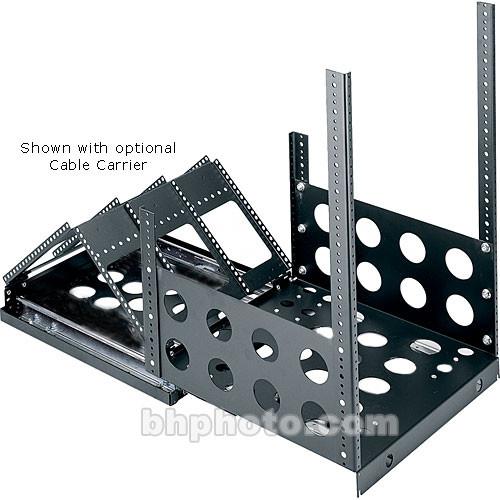

User Manual for Middle Atlantic SRS Series 19" Sliding Rail System SRS2-11 Click to enlarge the picture
Contents of the user manual for the Middle Atlantic SRS Series 19" Sliding
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic SRS Series 19" Sliding contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This Middle Atlantic SRS Series 19" Sliding Rail System SRS2-11 is the perfect solution for in-wall and millwork mounting, or other set-ups that require convenient pull-out access to equipment. The rack can be pulled out a full 19" to provide rear access to components with shallow depths. Ball bearing slides ensure smooth roll out of equipment.
This rack is designed for 19" equipment and has a capacity of 11U. It has a usable depth of 18-1/4" and 2 supporting rail slides for a weight capacity of 150 lb. The unit locks closed with included hardware and includes a rear pair of 7U, 10-32 rackrails (in addition to standard front rackrails). Optional accessories allow you to customize this rack to meet your exact needs, such as a brush gasket to fill unsightly gaps between the rack and custom millwork, and a triple-hinged, full-width cable carrier. - Solid Construction
- All-steel construction guarantees exceptional strength and years of use.
- Mobility
- Rack mounts on pull-out slides, allowing quick, easy access to equipment.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specifications Software
- RackTools free layout and specification software included for effective system design help.
UPC: 656747026430 In the Box Middle Atlantic SRS Series 19" Sliding Rail System SRS2-11 Rack Frame (with slides) Trim / Locking Panel 4 x Rackrails (2 pairs, full front and 7U rear) Assembly Hardware Kit Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic SRS Series 19" Sliding Rail System SRS2-11 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic SRS2-11 Specs | Construction | Steel | | Finish | Black, powder-coat finish | | Shelf | None | | Cabinet | Accepts 19" Equipment (Width)
Depth 18-1/4" (Usable Depth)
Capacity 19-1/4" (11U) | | Mobility | Rack sits on pull-out rails, allowing easy rear access to equipment
Ball bearings ensure smooth roll out | | Dimensions (WxHxD) | 19-3/8 x 21-1/8 x 18-5/8" (Minimum Millwork Rough Opening Dimensions)
*Add additional 3/8" to Millwork dimensions when using optional gasket | | Weight Capacity | 150 lb. | | Weight | not specified by manufacturer |
