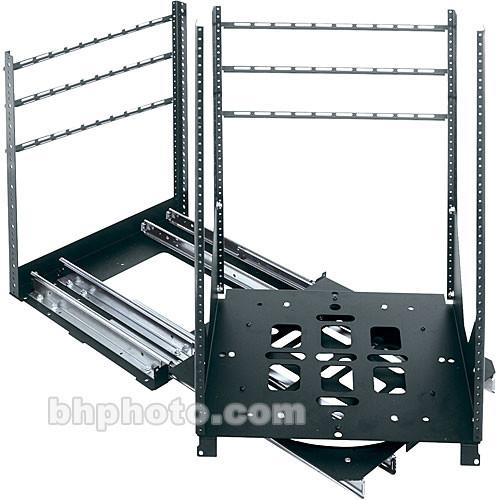

User Manual for Middle Atlantic SRSR Series 19" Rotating Sliding Rail System SRSR-4-20 Click to enlarge the picture
Contents of the user manual for the Middle Atlantic SRSR Series 19" Rotating
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic SRSR Series 19" Rotating contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This SRSR Series 19" Rotating Sliding Rail System SRSR-4-20 is a pull-out, rotating rack system designed to allow easy rear access to equipment in millwork and cabinets. It extends and rotates 90° in either direction, making it an ideal solution for smaller millwork and in-wall installations. Its detachable rack frame also allows for in-shop integration and on-site installation of equipment, saving valuable time in the field. It also locks in place at 0°, 60°, and 90° to ease maintenance tasks. Ball bearing slides ensure a smooth rollout.
The rack is designed for use with 19" equipment and will support up to 300 lb. of equipment on (4) slides. A cable-management system ensures organization of abundant cabling. Standard hardware includes a locking device for maximum security. A wide array of accessories allows you to fully customize your cabinet to meet your needs, including a brush gasket to fill unsightly gaps that may appear between the rack and custom millwork. - Solid Construction
- Steel construction ensures years of reliable use.
- Customization
- A variety of accessories allow you to personalize your rack to meet your exact needs.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specifications Software
- RackTools free layout and specification software included for effective system design help.
- Quality Guaranteed
- Warranted to be free from defects in material or workmanship under normal use and conditions for a period of 3 years.
UPC: 656747043284 In the Box Middle Atlantic SRSR Series 19" Rotating Sliding Rail System SRSR-4-20 Rack Frame 4 x Slides Detachable Rack Front-Mounted Tab Assembly Hardware 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic SRSR Series 19" Rotating Sliding Rail System SRSR-4-20 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic SRSR-4-20 Specs | Construction | Steel | | Finish | Black brushed and anodized finish | | Shelf | None | | Cabinet | Accepts 19" equipment (Width)
Depth 19" (Usable Depth)
Capacity 35" (20U) | | Mobility | Not specified by manufacturer | | Dimensions (WxHxD) | 22 x 38 x 19-1/4" | | Weight Capacity | 300 lb | | Weight | Not specified by manufacturer | | | | Package Weight | 68.84 lb | | Box Dimensions (LxWxH) | 38.5 x 29.0 x 13.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
