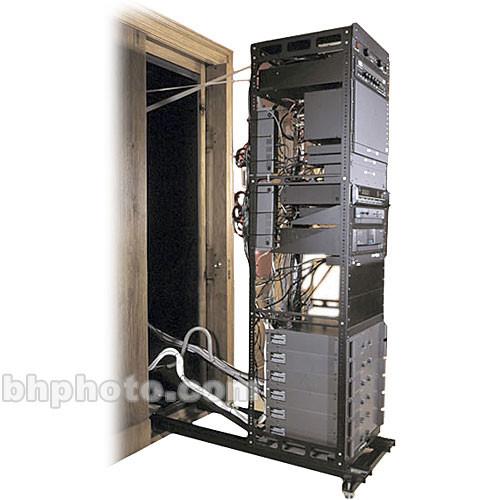

User Manual for Middle Atlantic SSAX-40 In-Wall 40U AXS System 25"-Extension 16"D Click to enlarge the picture
Contents of the user manual for the Middle Atlantic SSAX-40 In-Wall 40U AXS
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic SSAX-40 In-Wall 40U AXS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description Middle Atlantic's In-Wall 40U AXS System with 25" Extension and 16" Depth is the ultimate full-service electronic device manager rack, because it allows convenient pull-out access to your equipment. This SSAX model features 40U (70-inches high) of rack space and extends 25 inches for rack wall. The SSAX series touts 16 to 10-AWG gauge steel that supports up to 650 lbs--much higher than average rack systems. It is constructed with a detachable rack frame for off-site equipment integration, yet has all of the in-house characteristics that make it invaluable: smooth glide ball bearings, articulating cable carriers, pre-marked standard rack holes, and the option of 3"H to 40"H rack installation (requires removable stand for elevated setup). For all-tech perfection, install this rack system into any modular wall and tuck it out of sight. Black anodized finish and black e-coat remain wear resistant as the SSAX system does its job. It features top rack space that can hold up to two fans. This prime rack system gives electronic systems the pivotal treatment for which they were designed. Middle-Atlantic holds nothing back in convenience, utility, and ingenuity of design. The best device protection and display is right here. - Unbeatable 650-pound Capacity
- You don't have hold your breath as the last peripheral is placed on deck, because this SSAX series has a whopping 650-lb capacity on every one of its rack systems.
- Deeper Rack Extension
- This series is uniquely design to have a 25" rack extension for larger devices and for even easier installtion.
- Articulating Cable Management
- Don't worry about the cables! The articulating extenders on this model expand and retract with the rack so that your system remains wire-jam free and worry free.
- Easily Customizable
- This model allows you free interpretation of your rack. Adjust rack shelves (not included) to fit any devices you need to place on this rack. With clearly marked mounting holes and plenty or arrangement varieties, this rack system is an easy-going design that fits your work space.
- Heat Management
- When devices are stacked on top of one another, device heat management suffers. This shelving unit features an open design for thermal management, and top rack space for two fans.
- Durable Steel Structure
- Middle-Atlantic uses 16- to 10-AWG gauge steel on this rack. Feel comfortable that your shelving unit can easily support your devices up to 650 lbs.
UPC: 656747073915 In the Box Middle Atlantic SSAX-40 In-Wall 40U AXS System 25"-Extension 16"D Rack Frame (with slides) 2 x Cable Managaement Rails 4 x Rackrails (2 pairs, full front and rear) Assembly Hardware Kit 3-Year Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic SSAX-40 In-Wall 40U AXS System 25"-Extension 16"D in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic SSAX-40 Specs | Construction | Steel | | Finish | Black, powder-coat finish | | Shelf | None Additional Shelves Can Be Purchased Separately | | Cabinet | Accepts 19" Equipment (Width)
Depth 16" (Usable Depth) | | Mobility | Rack extends 25" | | Dimensions (WxHxD) | 19 x 70 x 16" (48 x 178 x 41 cm) | | Weight Capacity | 650 lbs. | | Weight | not specified by manufacturer |
