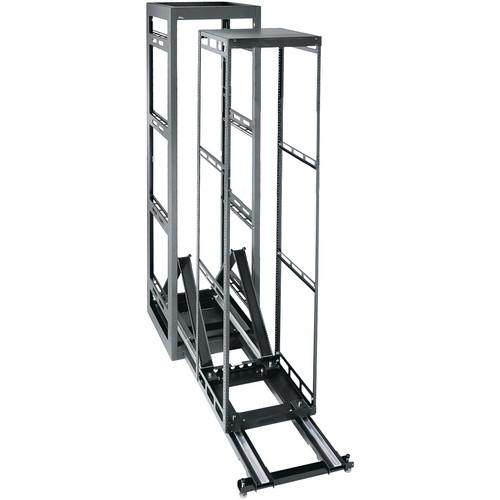

User Manual for Middle Atlantic Steel Rack System Pull-Out Click to enlarge the picture
Contents of the user manual for the Middle Atlantic Steel Rack System Pull-Out
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic Steel Rack System Pull-Out contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This Middle Atlantic AXS System For Steel Racks ERK-3525AXS provides the stability of the ERK-Series rack frame hosted within a pull-out frame for added mobility. Place racks side by side or back to back for more efficient use of space.
It features a fully-welded, steel construction with 32U capacity designed to hold 19" wide equipment. The steel frame and mechanically locking corners provide a weight capacity of up to 650 lb. This enclosure is also seismic certified to protect up to 470 lb. of essential equipment when used with the ERK host cabinet in conjunction with ERK-Z4 brackets.
The rack comes standard with (2) pairs of fixed-position, 11-gauge threaded, 10-32 rackrails with EIA spacing and labeled rackspace increments. Electrical knockouts on rear plates (both top and bottom) can easily be removed to pass cables (includes 1/2", 3/4", 1" and 1-1/2" openings). This model also features a configurable, open top with a UHF/VHF knockout. And customization is a snap with a wide-array of practical accessories to meet your exact needs. Service Track50 and Track Leveler TrackL are required for proper use of this product (both sold separately). - Solid Construction
- All-steel construction and structural-steel braces guarantee exceptional strength and years of use.
- Seismic Certified
- Protects up to 470 lbs. of essential equipment when used in conjunction with ERK-Z4 brackets.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specifications Software
- RackTools free layout and specification software included for effective system design help.
- Quality Guaranteed
- Limited Lifetime Warranty to Original Purchaser
In the Box Middle Atlantic Steel Rack System Pull-Out ERK Rack Frame Pull-Out Rack Frame 4 x Rackrails (2 pairs, front and rear) Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic Steel Rack System Pull-Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic ERK-3525AXS Specs | Construction | Welded, steel frame and mechanically locking corners | | Finish | Black, powder-coat finish | | Shelf | None | | Cabinet | Accepts 19.0" (48.0 cm) equipment (Width)
Depth 20.0" (51.0 cm)
Capacity 56.0" (32U) | | Mobility | Not specified by manufacturer | | Dimensions (WxHxD) | 22.0 x 65.4 x 20.0" (56.0 x 166.0 x 51.0 cm) | | Weight Capacity | 650 lb (295.0 kg)
(Seismic certified capacity up to 470 lb when used in conjunction with ERK-Z4 brackets) | | Weight | Not specified by manufacturer | | | | Package Weight | 208.0 lb | | Box Dimensions (LxWxH) | 72.0 x 30.0 x 27.0" |
