Product description Middle Atlantic Products' UCP FK2 Frame Kit for Custom Panels is a hinged version of the FK2 frame kit, which lets you build custom connection panels using off-the-shelf parts. (The UCP modular custom-panel series provides prepunched panels that can hold XLR, Neutrik, Elco, Canare, and many other common and esoteric I/O connectors.) Hinged custom-panel frames made with the FK2 are easy to modify and maintain.
The FK2 is 2 RU high. For 4-space installations, order the FK4 instead. - Build Custom Panels
- Build rackmount electronics panels to your own specifications using the FK2 Frame. Choose from a wide selection of precut modules to put in your frame including BNC, XLR, Phono, BANA, Socapex, Multipin, DB, Combo, and DL Series punchouts, among others. You can also install blank and vented modules in the five module slots of the FK2.
Compatible with: - UCP Series Connector Punchout Modules
- XLR Female: UNIV1, UNIV2, UNIV3, UNIV4, UNIV6
XLR Male: XLRM6
Combo Male/Female: COMBO2, COMBO4, COMBO6
Circular Flange, 4 Bolt: 4SC1, 4SC3
Multipin Elco: 1ELCO38, 1ELCO56, 1ELCO90, 1ELCO120, 2ELCO38, 2ELCO56, 2ELCO90
Multipin Whirlwind: 1W1, 1W2
1/4", 3/8" and 7/16" Holes for Jacks, Switches, LEDs, etc.: 3/8 X 1, 1/4 X 2, 3/8 X 2, 1/4 X 4, 3/8 X 4, 7/16 X 4, 3/8 X 6, 3/8 X 8
Canare BNC: CANARE4
Cannon DL Series Multipins: 2DL96
DB Multipin: 1DB9, 2DB9, 3DB9, 4DB9, 2DB37, 1DB15, 2DB15, 1DB25, 2DB25, 2DB50
BNC: 1/2 BNC1, 1/2 BNC2, 1/2 BNC3, 3/8 BNC4, 1/2 BNC4
Twistlock: TW2B, TW3B
DUP: DUP1, DUP2
Socapex 19-Pin: SPX-19
Universal Dual Banana: BANA2, BANA4, BANA6
Vent Module: UCP-VT

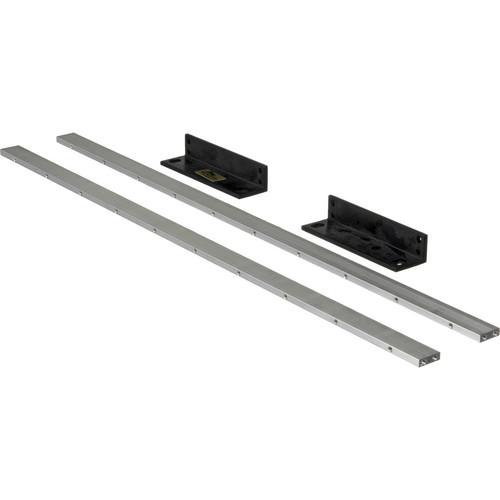

Blank Modules: UCPB1, UCPB2, UCPB3 UPC: 656747007538 In the Box Middle Atlantic UCP FK2 Frame Kit for Custom Panels Hinged Ear 2 x Threaded FK Bars Thumbscrew Ear Mounting Hardware Limited Lifetime Warranty Table of Contents
|
