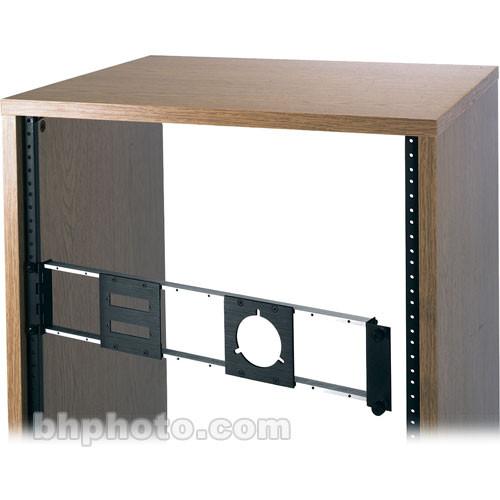

Product description Middle Atlantic Products' UCP-SF FK2 Swinging Frame for Custom Panels is a hinged version of the FK-2 frame kit, which lets you build custom connection panels using off-the-shelf parts. (The UCP modular custom panel series provides prepunched panels that can hold XLR, Neutrik, Elco, Canare, and many other common and esoteric I/O connectors.) Custom panels made with the hinged FK-2 are easy to modify and maintain: just swing it out to work on internal cabling, then lock it back in place using captive thumbscrews.
The FK-2 is 2 rack units high. For 4-space installations, order the FK-4 instead. - Build Custom Panels
- Build rackmount electronics panels to your own specifications using the FK2 Frame. Choose from a wide selection of precut modules to put in your frame including BNC, XLR, Phono, BANA, Socapex, Multipin, DB, Combo, and DL Series punchouts, among others. You can also install blank and vented modules in the five module slots of the FK-2.
- Swinging Frame
- The FK-2 Swinging Frame makes it easy to manipulate electronics mounted in your custom panel. Just swing the door open when you need to solder a wire, then fasten it securely with included thumbscrews.
Compatible with: - UCP Series Connector Punchout Modules
- XLR Female: UNIV1, UNIV2, UNIV3, UNIV4, UNIV6
XLR Male: XLRM6
Combo Male/Female: COMBO2, COMBO4, COMBO6
Circular Flange, 4 Bolt: 4SC1, 4SC3
Multipin Elco: 1ELCO38, 1ELCO56, 1ELCO90, 1ELCO120, 2ELCO38, 2ELCO56, 2ELCO90
Multipin Whirlwind: 1W1, 1W2
1/4", 3/8" and 7/16" Holes for Jacks, Switches, LEDs, etc.: 3/8 X 1, 1/4 X 2, 3/8 X 2, 1/4 X 4, 3/8 X 4, 7/16 X 4, 3/8 X 6, 3/8 X 8
Canare BNC: CANARE4
Cannon DL Series Multipins: 2DL96
DB Multipin: 1DB9, 2DB9, 3DB9, 4DB9, 2DB37, 1DB15, 2DB15, 1DB25, 2DB25, 2DB50
BNC: 1/2 BNC1, 1/2 BNC2, 1/2 BNC3, 3/8 BNC4, 1/2 BNC4
Twistlock: TW2B, TW3B
DUP: DUP1, DUP2
Socapex 19-Pin: SPX-19
Universal Dual Banana: BANA2, BANA4, BANA6
Vent Module: UCP-VT
Blank Modules: UCPB1, UCPB2, UCPB3 UPC: 656747022876 In the Box Middle Atlantic UCP-SF FK2 Swinging Frame for Custom Panels Hinged Ear 2 x Threaded FK Bars Thumbscrew Ear Mounting Hardware Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic UCP-SF FK2 Swinging Frame for Custom Panels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic UCP-SF Specs | Package Weight | 0.7 lb | Box Dimensions (LxWxH) | 19.0 x 4.0 x 1.0" |
