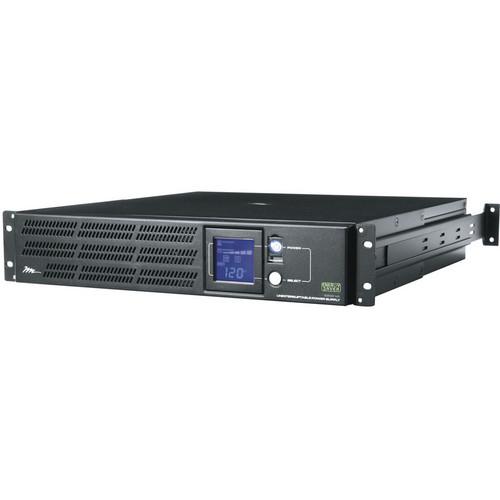

User Manual for Middle Atlantic UPS-1000R-8IP Uninterruptible Power Supply Click to enlarge the picture
Contents of the user manual for the Middle Atlantic UPS-1000R-8IP Uninterruptible Power Supply
- Product category: Cable & Power Management Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Cable & Power Management
|
User manual for the Middle Atlantic UPS-1000R-8IP Uninterruptible Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle-Atlantic UPS-1000R-8IP Uninterruptible Power Supply featuring a 19" (48.3 cm) deep compact rackmount chassis, provides up to 1000 VA / 750 W power to your electrical device in the occurrence of a power disruption.
Featuring automatic voltage regulation for 8 surge protected outlets, the line interactive Uninterruptible Power Supply helps protect the device from surges and overloads. Pure Sine Wave technology delivers optimum waveform that helps protect sensitive AV components. Load shedding extends runtime for critical loads and the energy saver mechanism helps reduce power consumption.
Using RS-232 and analog I/O, the Uninterruptible Power Supply can be easily integrated with control systems. Also included is a hot swappable primary battery that allows replacement even when the UPS is in operation. Up to 10 batteries (optional) can be connected to the UPS to achieve extended half-load runtimes of up to 20 hours. Stray magnetic fields are reduced via the 9' (2.7 m) SignalSafe power cord. Using the provided Middle Atlantic Power Manager software, you can configure vital system settings.
The Uninterruptible Power Supply supports real-time web monitoring, management and configuration via Web Browser or NMS (Network Management System). You can remotely schedule shutdown, start-up, and reboot of the system. Data logging and event logging features help monitor current power conditions, and notifications can be received via e-mail / SNMP. The Uninterruptible Power Supply supports TCP/IP, SNMP/HTTP, NTP, DNS, SMTP protocol and comes with a MIB (Management Information Base) and security management. Featuring a user-friendly interface, you can easily install and use the UPS. Firmware upgrades can be obtained via FTP (File Transfer Protocol). - Provides 1000 VA / 750 W uninterrupted power supply
- Provides power to electrical device in the occurrence of a power disruption
- 19" (48.3 cm) deep compact rackmount chassis
- Protects the device from surges and overloads via automatic voltage regulation and 8 surge protected outlets
- Individual outlet control
- Delivers optimum waveform via Pure Sine Wave technology that helps protect sensitive AV components
- Extends runtime for critical loads via load shedding
- Helps reduce power consumption via energy saver mechanism
- Integrates easily with control systems via RS-232 and analog I/O
- Hot swappable primary battery can be replaced even as the UPS is in operation
- Includes Middle Atlantic Power Manager software for configuring vital system settings
- Allows real-time web monitoring, management and configuration via Web Browser or NMS (Network Management System)
- 9' (2.7 m) SignalSafe power cord helps reduce stray magnetic fields
- Provides remote scheduling of shutdown, start-up and reboot
- Data logging and event logging features help monitor current power conditions
- Notifications can be received via e-mail / SNMP
- Supports TCP/IP, SNMP/HTTP, NTP, DNS, SMTP protocol
- Comes with a MIB (Management Information Base) and security management
- Offers a user friendly interface
- Allows quick installation
- Firmware upgrades can be obtained via FTP (File Transfer Protocol)
UPC: 656747134579 In the Box Middle Atlantic UPS-1000R-8IP Uninterruptible Power Supply Middle Atlantic Power Manager Software 3-Year Warranty on Electronics 2-Year Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic UPS-1000R-8IP Uninterruptible Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic UPS-1000R-8IP Specs | | | Input Voltage | 120 V | | Voltage Range | 80-145 VAC | | Frequency | 60 Hz +/- 3 Hz (auto sensing) | | Protection Circuits | Resettable thermal fuse | | Cord Length | 9' (2.7 m) | | Cord Type | 14/3 | | Plug | NEMA 5-15P | | Control | Critical / Non-critical Bank | | Consumption | Green Mode Consumption: Less than 9 W at full battery capacity | | Output Voltage | 120 V | | Capacity | 1000 VA / 750 W | | Waveform | Pure Sine Wave | | Output Frequency Range | On Line Output Frequency: 57-63 Hz for 60 Hz nominal
On Battery Output Frequency: 60 Hz +/- 0.1 Hz | | Transfer Rate | 4 ms typical line to battery / battery to line | | Overload Protection | On line mode:
100%≤ Load< 110% warning, 120 sec shutdown
110%≤ Load< 125% warning, 40 sec shutdown
125%≤ Load warning, 10 sec shutdown
On battery mode:
100%≤ Load< 110% warning, 30 sec shutdown
110%≤ Load< 125% warning, 10 sec shutdown
125%≤ Load warning, 3 sec shutdown | | Total Harmonic Distortion (THD) | Total System Load: 0% 20%
Utility Mains THD: 2.0% 2.0%
Battery Backup THD: 1.9% 1.3% | | Surge Protection | Lightning / Surge Protection:
L-N=>381 J (127 J x 3) Clamp voltage 270 V (Max energy 10 / 1000 μs)
RJ11 / RJ45 Protection:
Sidactor x 1 Clamp voltage 275 V Fuse (0.75 A / 250 V) x 2 | | | | Rating | 12 V / 9.0 AH x 4 | | Charger | Auto Charger: 1 A | | Battery | Hot Swappable External Battery: Yes | | Run Time | Run Time at Half Load: 26 minutes
Run Time at Full Load: 13 minutes | | Diagnostics | Control Panel: LCD Display Indicators, Power On
Audible Alarms: On Battery, Low Battery | | | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Relative Humidity | 0 to 95% Non-condensing | | | | Software | Middle Atlantic Power Manager | | | | Output Receptacles | (8) NEMA 5-15R | | Dimensions | 19 x 3.5 x 19.3" (483 x 89 x 490 mm) | | Weight | 68 lb (30.8 kg) | | | | Package Weight | 76.0 lb | | Box Dimensions (LxWxH) | 24.0 x 21.5 x 10.5" |
