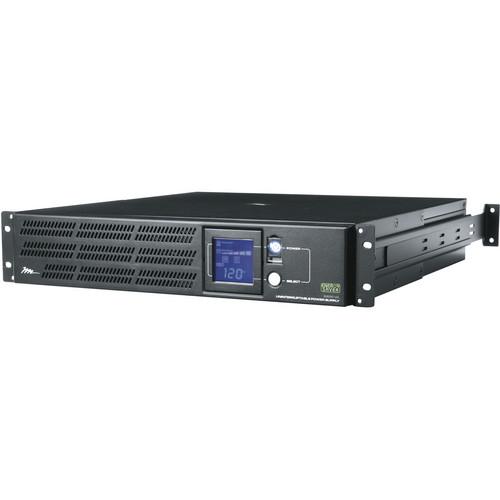

Product description The Middle Atlantic UPS-2200R-HH Uninterruptible Power Supply provides uninterrupted power supply to your AV components. Surge protection ensures the safety of your valuable equipment and Energy Saver Circuitry makes your power supply environment-friendly. - UPS Systems
-
- Pure Sine Wave technology provides optimum waveform for sensitive AV components
- Line interactive with Automatic Voltage Regulation
- Compact rackmount chassis only 19” (482.6mm) deep
- Easily integrates with control systems using RS-232 and analog I/O
- Total of 8 surge protected outlets
- Load shedding extends runtime for critical loads
- Expansion Battery Pack Option allows you to connect up to 10 expansion units (not included) to a single UPS for extended half-load runtimes of up to 20 hours
- Energy Saver circuitry reduces power consumption by up to 75%
- Hot swappable primary battery for easy service
- Hardwired 36" (914.4mm) flex cable input and output
- Power Manager software allows the configuration of vital system settings
UPC: 656747141140 In the Box Middle Atlantic UPS-2200R-HH Uninterruptible Power Supply 3-Year Warranty on Electronics 2-Year Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic UPS-2200R-HH Uninterruptible Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic UPS-2200R-HH Specs | | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 80 to 145 VAC | | Input Frequency Range | 60 ± 3 Hz (auto sensing) | | Protection | Type: Resettable thermal fuse | | Cord Length | 9" (228.6 mm)
Plug Type: NEMA 5 to 20P | | | | Green Mode Consumption | Less than 9 W at full battery capacity | | Nominal Output Voltage | 120 V | | Capacity | VA: 2150
W: 1650 | | Waveform | Pure sine wave | | Output Frequency | On Line: 57 to 63 Hz for 60 Hz nominal
On Battery: 60 ± 0.1 Hz | | Transfer Time | Typical: 4 ms typical line to battery / battery to line | | Overload Protection | On Line / Battery Mode: Yes | | | | Lighting / Surge Protection | L-N = 381 J (127 J x 3) clamp voltage
270 V (maximum energy 10 / 1000 μs) | | RJ11 / RJ45 Protection | 1x Sidactor clamp voltage 275 V
2x Fuse (0.75 A / 250 V) | | | | Rating | 12 V / 9 AH x 4 | | Auto Charger | 1 A | | Hot Swappable External Battery | Yes | | Standard Runtime | At Half Load @ 7%: 13 minutes
At Full Load @ 7%: 6 minutes | | Maximum Runtime | At Half Load @ 7%: 575 minutes
At Full Load @ 7%: 200 minutes Requires UPS-EBPR Expansion Battery Pack(s) | | | | Control Panel | LCD display indicators, power on | | Audible Alarm | On battery, low battery | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Relative Humidity | 0 to 95% non-condensing | | | | Software | Middle Atlantic Power Manager | | | | Self-Test | Manual Self-Test via front panel | | Auto-Charger / Auto-Restart | Yes | | COM Ports | Primary: -RS232 Communication + Control
Analog Status Notification + Control
Secondary: Analog status notification only | | Built-in USB Interface | Yes | | | | Output Receptacies | (8) NEMA 5-20R | | Web Access Control | No | | Outlet | Bank control | | Rack Spaces | 2 | | Termination | Hardwired 36" (914.4mm) flex cable input and output | | Rear Mounting Range | 19 to 32" (482.6 to 812.8 mm) | | Dimensions (W x H x D) | 2U Rack: 17 x 3.5 x 19" (431.8 x 88.9 x 482.6 mm) | | Weight | 77 lb (34.92 kg) | | | | Package Weight | 90.0 lb | | Box Dimensions (LxWxH) | 24.0 x 21.5 x 10.5" |
