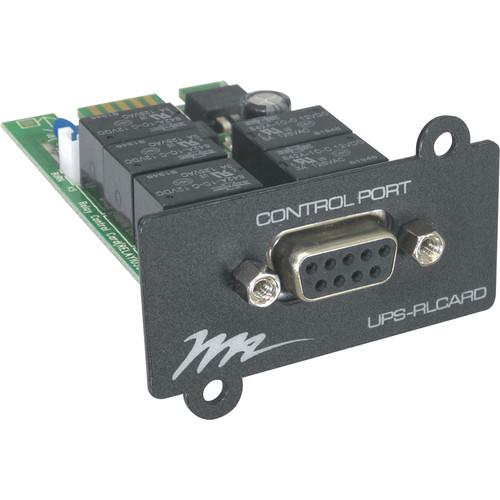

User Manual for Middle Atlantic UPS RLCARD - UPS Relay Card Module Click to enlarge the picture
Contents of the user manual for the Middle Atlantic UPS RLCARD - UPS
- Product category: Cable & Power Management Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Cable & Power Management
|
User manual for the Middle Atlantic UPS RLCARD - UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The UPS-RLCARD from Middle Atlantic is a UPS management module that is designed for use in any of the UPS backup power systems. The relay card offers 5 output contacts for remote monitoring UPS status and a single contact as a shutdown UPS command. The RLCARD is installed in the rear slot and offers a DB-9 port interface. Note: The RLCARD cannot be used in conjunction with the IP card. -
- Five output contacts for remote monitoring of UPS status
- One input contact for shutdown UPS command
- Installed in the expansion port on the rear panel of the UPS
In the Box Middle Atlantic UPS RLCARD - UPS Relay Card Module Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic UPS RLCARD - UPS Relay Card Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic UPS-RLCARD Specs | Input Voltage | 7.5 to 12 V | | Power Dissipation | 0.78 W (default 12 V input) | | Connection/Interface | DB9 | | Output Contact Rating | DC Voltage: 30 V
DC Current: 3 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Dimensions (H x W x D) | 0.6 x 1.6 x 3.2" / 1.4 x 4.2 x 8.1 cm | | Weight | Not specified by manufacturer |
