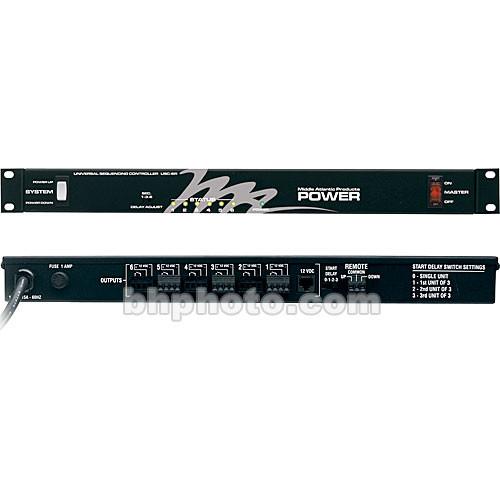

Product description The Middle Atlantic USC-6R Universal 6-Step Sequencing Controller provides 6-step sequencing control to any AC power distribution system that can be controlled by contact closure. You can initiate sequencing locally via a convenient front panel switch or remotely via Middle Atlantic's USC-KL wall plate key switch or any contact closure switch. - Selectable Interval Delay
- Featuring an interval delay selector of 1, 3, or 6 seconds between sequence steps, the USC-6R also provides four different start delay settings, letting you interconnect up to three units to operate as a single 18 step unit.
- Space Saving Design
- Occupies one rackspace (1.75") and is 9" deep.
- LED Indicators
- Includes six yellow LED indicators to monitor system status and one green LED for power indication.
- Multiple Connection Options
- Features terminal block outputs on the rear that are removable from the USC-6R chassis and provide three connection options:
- 12v DC output (individual channel terminal block)
- Dry switch closure (individual channel terminal block)
- 12v DC (all channels and (+) and (-) constant) terminated in a RJ-45 jack.
- Enhanced Protection
- The Master Power Switch Circuit Breaker switches power from the line cord to the rest of the unit and additionally provides overload protection (rated at 15A at 120 VAC). In addition, two fuses protect the DC power supplies, one located internally (to power internal voltages) and one located on the rear panel for 12 VDC connections to controlled devices.
- RJ-45 Jack Output
- Connected in parallel to the 12 VDC output on the individual channel terminal blocks, this output provides a convenient connection point for using devices or status monitor indicators.
- Quality Workmanship
- UL listed
UPC: 656747035449 In the Box Middle Atlantic USC-6R Universal 6-Step Sequencing Controller Limited lifetime warranty Brochure PDF 931.8kbbsbvzswuzwexcuwwdtbcedwur Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic USC-6R Universal 6-Step Sequencing Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic USC-6R Specs | Circuit Protection | 15A circuit breaker at 120V AC | | Dimensions (WxHxD) | 19 x 1.75 x 9" (482.6 x 44.45 x 228.6mm) | | Shipping Weight | 9.6 lb (4.36 kg) | | Finish | Black powder coat | | | | Package Weight | 9.75 lb | | Box Dimensions (LxWxH) | 22.0 x 13.5 x 3.6" |
