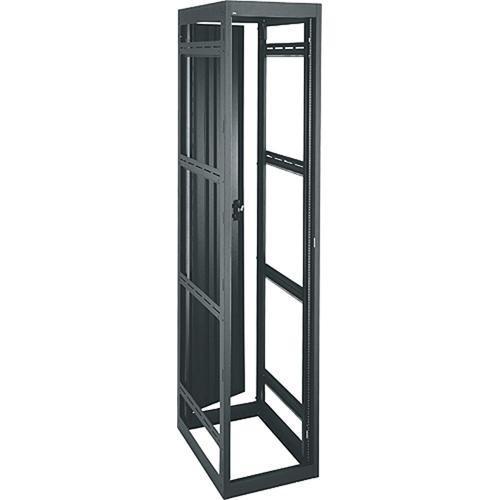

Product description The VMRK-54-36 from Middle Atlantic is a specialized video rack that provides 54U of rack space, and 33.5" (85 cm) of usable rack depth. It's built with 16 and 14 gauge steel and will support 2,500 lbs of equipment. This model comes with a solid, rear key-locked door with standard UHF/VHF knockouts. The top of this unit is open and configurable. This unit accepts broadcast standard 22" equipment and is UL Listed in the United States and Canada. Two pairs of threaded 10-32 rack-rails come standard with this model. It is finished with a durable, textured black powder coat. Optional horizontally split side panels are also available for this model. - 100-5/8" height (255.58 cm), 54 usable spaces
- Fully welded construction provides a static load capacity of 10,000 lbs, a UL listed load capacity of 2,500 lbs, and a seismic certified load capacity of 640 lbs
- Seismic certified (UBC 1997 & CBC 1998 Zone 4; IBC 2000, IBC 2003, ASCE 7 - 02, NFPA 5000 Seismic Use Group III) for protecting 640 lbs. of essential equipment when used in conjunction with Middle Atlantic MRK-Z4 brackets
- 1/2", 3/4", 1" and 1-1/2" electrical knockouts found on the removable split rear plates, top knockout plate additionally includes UHF/VHF antenna knockouts
- Broadcast standard 22" width
- 2 pairs threaded 10-32 "Z-RAIL" standard
- Laser-cut 1/8" thick internal steel braces for strength
- 14-gauge steel tops & bottoms, 16-gauge seamless steel sides
- Configurable open top accepts a number of top options
- Key-locked solid rear door standard
- Finished in durable textured black powder coat
- Optional horizontally split side panels available
- Grounding and bonding stud installed in base
- UL Listed in the US and Canada
UPC: 656747109867 In the Box Middle Atlantic VMRK-54-36, 54-Space Video Rack with Rear Door Key-Locked Solid Rear Door 2 x Pairs of Rack Rails (Front & Rear) Assembly Hardware Kit Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic VMRK-54-36, 54-Space Video Rack with Rear Door in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic VMRK-54-36 Specs | Construction | Steel | | Finish | Black textured powder coat | | Shelf | None | | Cabinet | 54U (94-1/2") | | Dimensions (WxHxD) | 22 x 100-5/8 x 36" | | Weight Capacity | 2,500 lbs standard
640 lbs seismic certification | | Weight | Not specified by manufacturer | | | | Package Weight | 358.0 lb | | Box Dimensions (LxWxH) | 108.0 x 42.0 x 30.0" |
