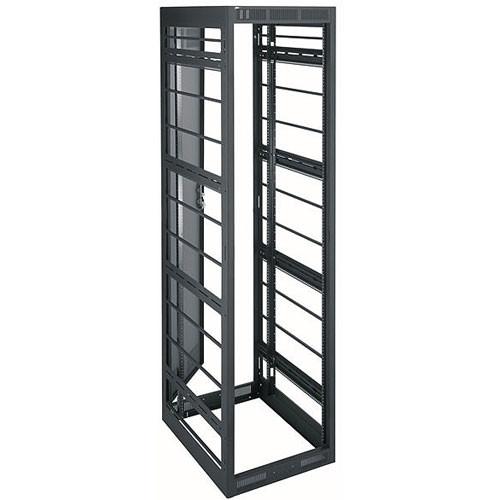

User Manual for Middle Atlantic VRK-44-36H 36" Deep 44U Video Rack Enclosure with Rear Door Click to enlarge the picture
Contents of the user manual for the Middle Atlantic VRK-44-36H 36" Deep 44U
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic VRK-44-36H 36" Deep 44U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The VRK-44-36H 36" Deep 44U Video Rack Enclosure with Rear Door from Middle Atlantic is a specialized video rack that provides 44U of rack space. It is constructed of steel and will support 2500 lbs of equipment in its standard configuration or up to 775 lbs under its seismic certification. This model comes standard with a vented rear key-locked door with UHF/VHF knockouts. The open top of the unit is configurable and (16) horizontal bars with 7" centers are also included for quick cable lacing.
This unit accepts standard 22" broadcast equipment and is UL Listed in the United States and Canada. Two pairs of threaded 10-32 rack rails are included. It is finished with a durable textured black powder coat. Optional horizontally split side panels are also available for this model. - Solid Construction
- All-steel construction guarantees exceptional strength and years of use.
- No-Clog Rack-Rail Threads
- All rack rails are finished in a durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rack rails are labeled in EIA standard rack-space increments, allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rack screws save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment per NEBS and NEC standards.
- Free Layout & Specifications Software
- RackTools free layout and specification software is included for effective system design help.
UPC: 656747075421 In the Box Middle Atlantic VRK-44-36H 36" Deep 44U Video Rack Enclosure with Rear Door Rack Frame Rear Door 2 x Pair Rack Rails (Front & Rear) 16 x Rack Lacing Bars Assembly Hardware Kit Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic VRK-44-36H 36" Deep 44U Video Rack Enclosure with Rear Door in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic VRK-44-36H Specs | Construction | 14-gauge steel (top and bottom)
16-gauge steel (horizontal braces)
(horizontal braces are welded to uprights of 16-gauge steel, resulting in 1/8" structural steel internal braces) | | Finish | Black textured powder coat | | Shelf | None | | Cabinet | 44U (77") useable height
33-1/2" useable depth | | Mobility | Not specified by manufacturer | | Dimensions (HxWxD) | 83-1/8 x 22 x 36" | | Weight Capacity | 2500 lbs standard
775 lbs seismic certification | | Weight | Not specified by manufacturer | | | | Package Weight | 184.0 lb | | Box Dimensions (LxWxH) | 89.0 x 39.0 x 27.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
