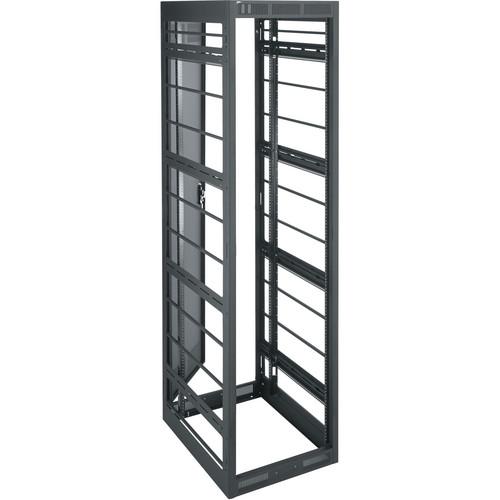

User Manual for Middle Atlantic VRK-44-42HLRD 19" Gangable Rack Mount without Rear Door Click to enlarge the picture
Contents of the user manual for the Middle Atlantic VRK-44-42HLRD 19" Gangable Rack
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic VRK-44-42HLRD 19" Gangable Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle Atlantic VRK-44-42HLRD 19" (482.6mm) Gangable Rack Mount without Rear Door satisfies the 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas of high seismicity, Seismic Use Group III, Zone 4 or Seismic Design Category (SDC) “D” with lateral force requirements for protecting 740 lb of essential equipment in locations with the highest level of seismicity and top floor or rooftop installations with an Importance factor (Ip) of 1.5 when used with MRK-Z4 seismic floor anchor bracket. - 1/8 thick structural steel internal braces
- Features horizontal lacing bars made from 1/2 thick tubing on 7" (177.8mm) centers, which facilitate quick tie-and-slide lacing
- Optional solid, fully vented, plexi, and vented plexi front doors available
- Open top with configurable top panel options
- Seismic certified (when used with VRK-Z4 option) with an Ip value of 1.5
- Durable, black textured, powder-coat finish with numbered rack spaces
- UL listed in the US and Canada
- Rack comes equipped with 2 pairs of 11-gauge steel rack rail with tapped 10-32 mounting holes in universal EIA spacing
- Sides of rack shall feature 16 pre-installed horizontal lacing bars
In the Box Middle Atlantic VRK-44-42HLRD 19" (482.6mm) Gangable Rack Mount without Rear Door Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic VRK-44-42HLRD 19" Gangable Rack Mount without Rear Door in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic VRK-44-42HLRD Specs | Certifications | UL listed in the US and Canada, Greenguard Indoor Air Quality certified for children and schools, RoHS EU directive 2002 / 95 / EC compliant, 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas of high seismicity, Seismic Use Group III, zone 4 or Seismic Design Category (SDC) "D" | | Usable Height | 44 rack space | | Construction | Top & Bottom: 14-gauge steel
Horizontal: 16-gauge steel
Thickness: 0.12" (3.04 mm) | | Mounts on Studs | Grounding and Bonding: 1/4-20-threaded installed in base of enclosure | | Dimensions (H x W x D) | 83.12 x 22 x 42" (2111.24 x 558.8 x 1066.8 mm) | | Load Capacity | Seismic Certified: 740 lb (335.65 kg)
UL Listed: 2,500 lb (0.90 kg) | | | | Package Weight | 150.0 lb | | Box Dimensions (LxWxH) | 89.0 x 45.0 x 26.0" |
