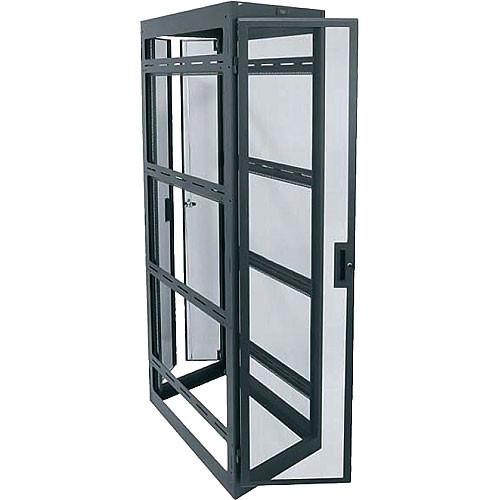

Product description This WMRK-2436SVR 36" Overall Depth/33-1/2" Useable Depth Multi-Vendor Server Enclosure (42U) with Side Panels from Middle Atlantic is a rack optimized to work with the most popular series of servers on the market and extend their life through passive thermal management. This model is constructed of welded steel to ensure years of use. Moreover, it will support up to 1000 pounds of equipment.
The front and back of the rack feature adjustable cage-nut style rails with Z-rail adapters that will accommodate most server-slide kits. The front door, split rear doors, and the top of the rack are all perforated with a 64% open area to promote airflow and keep your equipment cool. A pre-installed temperature display with a sensing probe and plug-in power supply also facilitate control of temperature within the rack.
The top of the rack includes (5) integral 4" gland grommets for a cable pass-through and will also accept a 6, 9, or 12" cable ladder. Multiple racks can be ganged together when fully loaded (order base models with side panels and ganged models without side panels). Ganging hardware is included with the rack. This model also ships with a mounted 20A vertical power strip. - Industry Standard Compatibility
- This rack is optimized to work with the most popular series of servers on the market.
- Passive Thermal Management
- The front door, split rear doors, and the top of the rack are all perforated with a 64% open area to promote air flow and keep your equipment cool.
- Temperature Probe
- A pre-installed temperature display with a sensing probe and plug-in power supply also facilitate control of temperature within the rack.
- Solid Construction
- Welded-steel construction guarantees exceptional strength and years of use.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rack rails are labeled in EIA standard rack-space increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rack screws save installation time.
- Grounding/Bonding Studs
- Grounding/bonding studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specification Software
- RackTools free layout and specification software is included for effective system design help.
UPC: 656747095504 In the Box Middle Atlantic WMRK-2436SVR 36" Overall Depth/33-1/2" Useable Depth Multi-Vendor Server Enclosure (42U) with Side Panels Rack Frame 2 x Pair Rack Rails (Front & Rear) Top Panel Front Door Split Rear Door 2 x Side Panels Bottom Panel Vertical Power Strip Temperature Display with Probe and Plug-In Power Supply 100 x 6mm Mounting Hardware Pieces Ganging Hardware Kit 5 x 4" Gland Grommets Layout Software Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic WMRK-2436SVR 36" Overall Depth 33-1 2" Useable Depth Multi-Vendor Server Enclosure with Side Panels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic WMRK-4236SVR Specs | Construction | Welded steel | | Finish | Black powder-coat finish | | Shelf | None | | Cabinet | Accepts: 19" equipment (width)
Depth: 33-1/2"
Capacity: 42U (73-1/2") | | Dimensions (HxWxD) | 79-5/8 x 25-9/16 x 36" | | Weight Capacity | 1000 lbs | | Weight | Not specified by manufacturer | | | | Package Weight | 242.0 lb | | Box Dimensions (LxWxH) | 86.0 x 39.0 x 26.0" |
