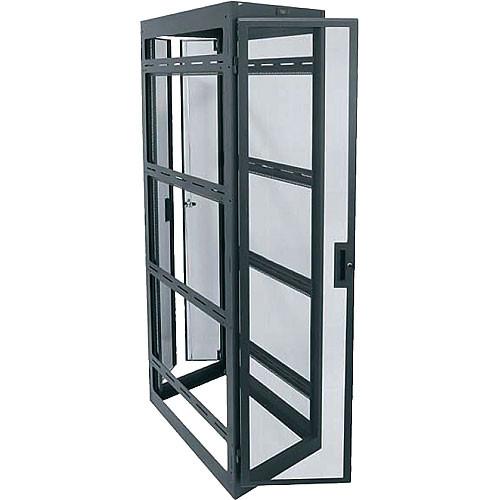

User Manual for Middle Atlantic WMRK-2436SVR 42" Overall Depth 39-1 2" Useable Depth Multi-Vendor Server Enclosure with Side Panels Click to enlarge the picture
Contents of the user manual for the Middle Atlantic WMRK-2436SVR 42" Overall Depth
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic WMRK-2436SVR 42" Overall Depth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This WMRK-2436SVR 42" Overall Depth/39-1/2" Useable Depth Multi-Vendor Server Enclosure (42U) with Side Panels from Middle Atlantic is a rack optimized to work with the most popular series of servers on the market and extend their life through passive thermal management. This model is constructed of welded steel to ensure years of use. Moreover, it will support up to 1000 pounds of equipment.
The front and back of the rack feature adjustable cage-nut style rails with Z-rail adapters that will accommodate most server-slide kits. The front door, split rear doors, and the top of the rack are all perforated with a 64% open area to promote airflow and keep your equipment cool. A pre-installed temperature display with a sensing probe and plug-in power supply also facilitate control of temperature within the rack.
The top of the rack includes (5) integral 4" gland grommets for a cable pass-through and will also accept a 6, 9, or 12" cable ladder. Multiple racks can be ganged together when fully loaded (order base models with side panels and ganged models without side panels). Ganging hardware is included with the rack. This model also ships with a mounted 20A vertical power strip. - Industry Standard Compatibility
- This rack is optimized to work with the most popular series of servers on the market.
- Passive Thermal Management
- The front door, split rear doors, and the top of the rack are all perforated with a 64% open area to promote airflow and keep your equipment cool.
- Temperature Probe
- A pre-installed temperature display with a sensing probe and plug-in power supply also facilitate control of temperature within the rack.
- Solid Construction
- Welded-steel construction guarantees exceptional strength and years of use.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rack rails are labeled in EIA standard rack-space increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rack screws save installation time.
- Grounding/Bonding Studs
- Grounding/bonding studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specification Software
- RackTools free layout and specification software is included for effective system design help.
UPC: 656747095528 In the Box Middle Atlantic WMRK-2436SVR 42" Overall Depth/39-1/2" Useable Depth Multi-Vendor Server Enclosure (42U) with Side Panels Rack Frame 2 x Pair Rack Rails (Front & Rear) Top Panel Front Door Split Rear Door 2 x Side Panels Bottom Panel Vertical Power Strip Temperature Display with Probe and Plug-In Power Supply 100 x 6mm Mounting Hardware Pieces Ganging Hardware Kit 5 x 4" Gland Grommets Layout Software Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic WMRK-2436SVR 42" Overall Depth 39-1 2" Useable Depth Multi-Vendor Server Enclosure with Side Panels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic WMRK-4242SVR Specs | Construction | Welded steel | | Finish | Black powder-coat finish | | Shelf | None | | Cabinet | Accepts: 19" equipment (width)
Depth: 39-1/2"
Capacity: 42U (73-1/2") | | Dimensions (HxWxD) | 79-5/8 x 25-9/16 x 42" | | Weight Capacity | 1000 lbs | | Weight | Not specified by manufacturer | | | | Package Weight | 362.0 lb | | Box Dimensions (LxWxH) | 86.0 x 46.0 x 27.0" |
