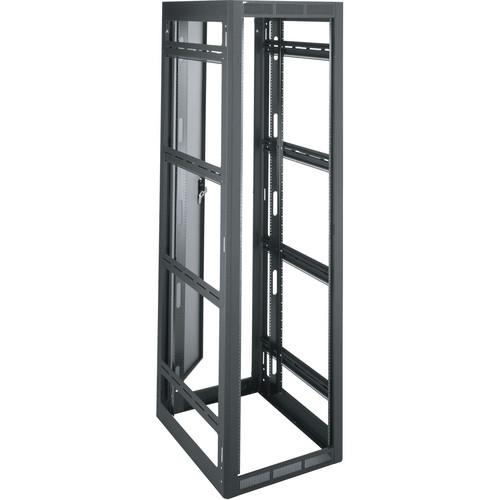

User Manual for Middle Atlantic WRK-40-27LRD 19" Gangable Enclosure Click to enlarge the picture
Contents of the user manual for the Middle Atlantic WRK-40-27LRD 19" Gangable Enclosure
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic WRK-40-27LRD 19" Gangable Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle Atlantic WRK-40-27LRD 19" (482.6mm) Gangable Enclosure satisfies the 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 standards for use in areas of high seismicity. It is certified Seismic Use Group III, Zone 4 or Seismic Design Category (SDC) “D” with lateral force requirements for protecting 900 lb of essential equipment in locations with the highest level of seismicity and top floor or rooftop installations with an Importance factor (Ip) of 1.5 when used with WRK-Z4 seismic floor anchor bracket. - 1/8" ((3.2mm) thick structural steel internal braces
- 24.25" (615.95mm) OD width and 32.63" (828.80mm) OD depth available
- 0.5" (12.7mm), 0.75" (19.05mm), 1" (25.4mm), and 1.5" (38.1mm) electrical knockouts on split rear plates top and bottom, easily removable for cable pass-through, top plates additionally include UHF / VHF knockouts
- 2 extra-wide pairs of 11-gauge 10 to 32-threaded rack rail with numbered rack space increments
- Optional solid, fully vented, plexi, and vented plexi doors
- Open top with configurable top panel options
- Durable, black-textured, powder-coat finish
- Seismic certified (when used with WRK-Z4 option) with an Ip value of 1.5
- UL listed in the US and Canada
UPC: 656747024894 In the Box Middle Atlantic WRK-40-27LRD 19" (482.6mm) Gangable Enclosure Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic WRK-40-27LRD 19" Gangable Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic WRK-40-27LRD Specs | Certifications | UL listed in the US and Canada, Greenguard Indoor Air Quality certified for children and schools, RoHS EU directive 2002 / 95 / EC compliant | | Usable Height | 70.13" (1781 mm) | | Usable Depth | 25.75" (654 mm) | | Construction | Top & Bottom: 14-gauge steel
Horizontal: 16-gauge steel
Thickness: 0.12" (3.04 mm) | | Knockouts | Electrical (Installed at Base): 0.5" (12.7 mm)
0.75" (19.05 mm)
1" (25.4 mm)
1.5" (38.1 mm)
BNC for UHF / VHF Antennae (Installed on Top): 0.5" (12.7 mm)
0.75" (19.05 mm)
1" (25.4 mm)
1.5" (38.1 mm) | | Mounts on Studs | Grounding and Bonding: 1/4-20-threaded installed in base of enclosure | | Overall Height | 76.13" (1,934 mm) | | Overall Depth | 27.63" (702 mm) | | Dimensions (H x W x D) | 76.13 x 24.25 x 32.63" (1934 x 615.95 x 828.8 mm) | | Load Capacity | Seismic Certified: 900 lb (408.23 kg)
UL Listed: 2,500 lb (0.90 kg)
Static: 10,000 lb (4.53 kg) | | | | Package Weight | 140.0 lb | | Box Dimensions (LxWxH) | 84.0 x 30.0 x 27.0" |
