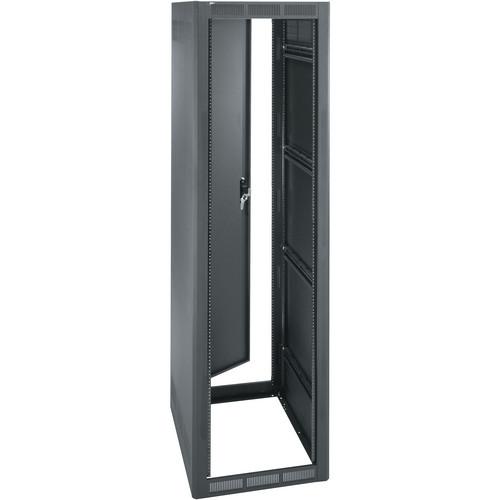

User Manual for Middle Atlantic WRK-40SA-27LRD 19" Stand-Alone Enclosure Click to enlarge the picture
Contents of the user manual for the Middle Atlantic WRK-40SA-27LRD 19" Stand-Alone Enclosure
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic WRK-40SA-27LRD 19" Stand-Alone Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle Atlantic WRK-24SA-27LRD 19" Stand-Alone Enclosure is ideal for concealing large cable bundles and provides good convection for safety. - Numbered rackspace increments speed equipment mounting
- Fully welded construction provides: static load capacity up to 10,000 lb (4,535.92 kg), UL listed load capacity up to 2,500 lb (1,134 kg), and seismic certified load capacity up to 900 lb (408.23 kg)
- Generous 24.25" (61.6 cm) OD width provides room for cables
- 0.5" (1.27 cm), 0.75" (1.9 cm), 1" (2.54 cm), and 1.5" (3.81 cm) electrical knockouts found on removable split rear plates, top knockout plate includes UHF/VHF antenna knockouts
- Available depth: 27.5" (69.85 cm)
- Cable pass-through located in the face of the standard front
- Rear adjustable 11-gauge, 10-32 threaded, extra-wide rack rail facilitates the passing of cable from the face of the equipment to the rear
- Laser-cut 1/8" (0.32 cm) thick internal steel braces for strength
- 14-gauge steel tops & bottoms, 16-gauge seamless steel sides
- Configurable open top accepts a number of top options
- Standard locking rear door incorporates spring loaded latch to keep door closed without key
- Stud in base of enclosure facilitates proper grounding and bonding of electronic equipment, as per NEBS and NEC standards
- Finished in a durable black textured powder coat
- Sports a powder coat finish
- Also available without rear door
- UL Listed in the US and Canada
- Seismic certified to the following codes and standards: 2007/2010 CBC, 2006, 2009/2012 IBC, ASCE 7-05 (2005 edition)/ASCE 7-10 (2010 edition), and 2006/2009 editions of NFPA 5000 for use in areas of high seismicity (zone 4 or Seismic Design Category (SDC) "D")
- Designed for mission critical and/or high-importance installations in locations with the highest level of seismicity and top floor or rooftop installations including those within UBC and CBC
- Essential facilities or IBC, ASCE 7, and NFPA 5000 Seismic Use Group III facilities
- Importance factor (IP): 1.5
- Seismic Certified load capacity of 900 lb (408.23 kg) when used with WRK-Z4 seismic floor anchor brackets
In the Box Middle Atlantic WRK-40SA-27LRD 19" Stand-Alone Enclosure Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic WRK-40SA-27LRD 19" Stand-Alone Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic WRK-40SA-27LRD Specs | Weight Capacity | Fully welded construction: 10,000 lb (4,536 kg) UL listed: 2,500 lb (1,134 kg) | | Construction | Top and bottom: 14-gauge steel Horizontal braces: 16-gauge steel | | Mounting Thread | 1/4-20 | | Certifications | Seismic certified to the following codes and standards: 2007/2010 CBC, 2006, 2009/2012 IBC, ASCE 7-05 (2005 edition)/ASCE 7-10 (2010 edition), and 2006/2009 editions of NFPA 5000 for use in areas of high seismicity (zone 4 or Seismic Design Category (SDC) "D") | | Dimensions (HxD) | Overall: 76.13 x 27.63" (193.37 x 70.18 cm) Usable: 70.13 x 25.75" (178.13 x 65.41 cm) | | | | Package Weight | 158.0 lb | | Box Dimensions (LxWxH) | 82.0 x 30.0 x 27.0" |
