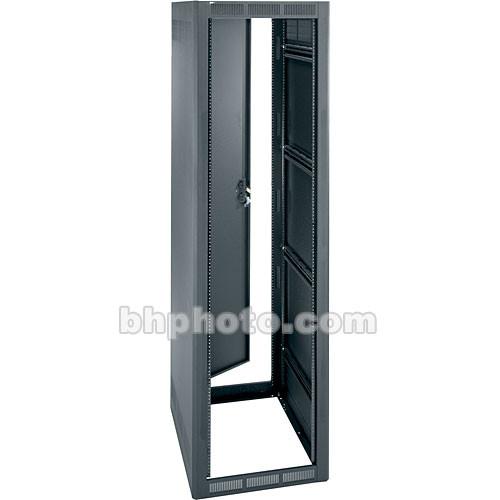

User Manual for Middle Atlantic WRK-SA Series 19" Stand-Alone Enclosure WRK-37SA-27 Click to enlarge the picture
Contents of the user manual for the Middle Atlantic WRK-SA Series 19" Stand-Alone
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic WRK-SA Series 19" Stand-Alone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This Middle Atlantic WRK-SA Series 19" Stand-Alone Enclosure WRK-37SA-27 is a fully welded steel rack with 37U capacity with a generous overall width of 24-1/4" for easy passage of cables. Its steel frame and 1/8" thick laser-cut structural-steel internal braces provide a weight capacity of up to 2,500 lb. This enclosure is also seismic certified to protect up to 1,000 lb. of essential equipment when used in conjunction with WRK-Z4 brackets.
This rack comes standard with (2) extra-wide pairs of 11-gauge threaded 10-32 rackrails with EIA spacing, labeled rackspace increments, and cable pass-through openings in the face. The top and the bottom of the rack feature 14-gauge steel, while the sides are made of 16-gauge seamless steel. Electrical knockouts on rear plates (both top and bottom) can easily be removed to pass cables (includes 1/2", 3/4", 1" and 1-1/2" openings). The configurable, open top also includes a UHF/VHF knockout, as well as an opening for a wireless antenna.
Choose from a number of add-on accessories to customize your rack to meet your exact needs. A key-locked solid, rear door comes standard with this model. This rack is UL listed in the U.S. and Canada. - Solid Construction
- All-steel construction and structural-steel braces guarantee exceptional strength and years of use.
- Seismic Certified
- Protects up to 1,000 lbs. of essential equipment when used in conjunction with MRK-Z4 brackets.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- UL Listed
- This rack is UL (Underwriters Laboratories) listed in the U.S. and Canada.
- Free Layout & Specifications Software
- RackTools free layout and specification software included for effective system design help.
- Quality Guaranteed
- Limited Lifetime Warranty to original purchaser
UPC: 656747024757 In the Box Middle Atlantic WRK-SA Series 19" Stand-Alone Enclosure WRK-37SA-27 Rack Frame Locking Rear Door 4 x Rackrails (2 pairs, front and rear) Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic WRK-SA Series 19" Stand-Alone Enclosure WRK-37SA-27 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic WRK-37SA-27 Specs | Construction | Welded steel frame and 1/8" thick, structural-steel, internal braces | | Finish | Black powder-coat finish | | Shelf | None | | Cabinet | Accepts 19" Equipment"
Useable Depth 25-3/4"
Capacity 64-3/4" (37U) | | Mobility | Not specified by manufacturer | | Dimensions (WxHxD) | 24-1/4 x 70-7/8 x 27-1/8" | | Weight Capacity | 2500 lb.
(Seismic certified capacity up to 1,000 lb. when used in conjunction with MRK-Z4 brackets) | | Weight | Not specified by manufacturer | | | | Package Weight | 202.0 lb | | Box Dimensions (LxWxH) | 76.0 x 29.0 x 26.0" |
