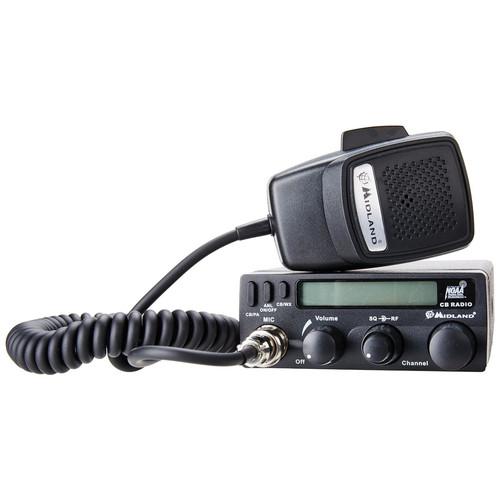

User Manual for Midland 1001LWX 40-Channel CB Radio with Weather Scan Click to enlarge the picture
Contents of the user manual for the Midland 1001LWX 40-Channel CB Radio with
- Product category: 2-Way Radios Midland
- Brand: Midland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midland 2-Way Radios
|
User manual for the Midland 1001LWX 40-Channel CB Radio with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midland product will considerably shorten its lifespan!
|
Product description Easily mountable with the included bracket and hardware, the 1001LWX 40-Channel CB Radio from Midland is a compact 40-channel Citizen Band radio featuring an easy-to-read, backlit LCD screen and weather scan. This 4W radio has three knobs for quick adjustments of volume, squelch control, and channels.
Press the WX Scan/CB button to begin the weather scan feature and the radio will lock onto the first strong weather channel signal to provide accurate, current weather reports and conditions. Simply press the button again to resume CB functionality. The included PTT electret microphone connects to the front of the radio, while an external speaker (available separately) can be attached to the back. Also located on the back of the radio is an antenna jack and a PA jack. - 40-channel CB radio with push-to-talk microphone
- Weather scan technology locks onto the strongest station for accurate weather reports
- Uses National Oceanic and Atmospheric Administration (NOAA) national weather service
- Backlit LCD display for easy visibility
- Digital tuner with channel knob
- Squelch control knob reduces background noise
- Automatic Noise Limiter (ANL) switch reduces ignition noise
- Public Address (CB/PA) switch to allow broadcasts to an optional PA speaker (available separately) via the PA jack
UPC: 046014710023 In the Box Midland 1001LWX 40-Channel CB Radio with Weather Scan Radio Mounting Bracket Microphone Mounting Bracket Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midland 1001LWX 40-Channel CB Radio with Weather Scan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidland 1001LWX Specs | | | Sensitivity | At 10 dB S/N: 0.8 uV | | Selectivity | 45 dB + 10 kHz | | Squelch | Range: 0.8 to 1000 uV | | Audio Output Power | 3 W at 8 Ohms (10% distortion) | | Distortion | At 1000 mV: 3% | | Audio Frequency Response | 400 to 2400 Hz | | Intermediate Frequency (IF) | 10.7 MHz, 455 kHz | | Spurious | > 40 dB | | | | RF Output Power | 4.0 W | | Frequency Tolerance | 0.005% | | Harmonic Suppression | > 60 dB | | Modulation | AM 90% (± 5%) | | | | Channels | 162.400–162.550 MHz:
Channel 1: 162.400
Channel 2: 162.425
Channel 3: 162.450
Channel 4: 162.475
Channel 5: 162.500
Channel 6: 162.525
Channel 7: 162.550 | | Sensitivity | At 12 dB S/N: 0.4 uV | | Spurious | > 40 dB | | | | Channels | 40 | | Frequency Range | 26.965–27.405 MHz | | Modulation | AM | | Antenna Impedance | 50 Ohms | | Loudspeaker | 8 Ohms | | Microphone | 1000 Ohms, electret | | Speaker | Built-in speaker | | Connectors | 4-pin microphone connector, antenna, PA jack, external speaker jack | | Power Supply | 13.8 VDC | | Electrical System Type | Negatively grounded | | Dimensions | 4.9 x 6.5 x 1.5" (12.4 x 16.5 x 3.8 cm) | | Weight | 1.6 lb (0.7 kg) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 9.6 x 9.3 x 2.5" |
