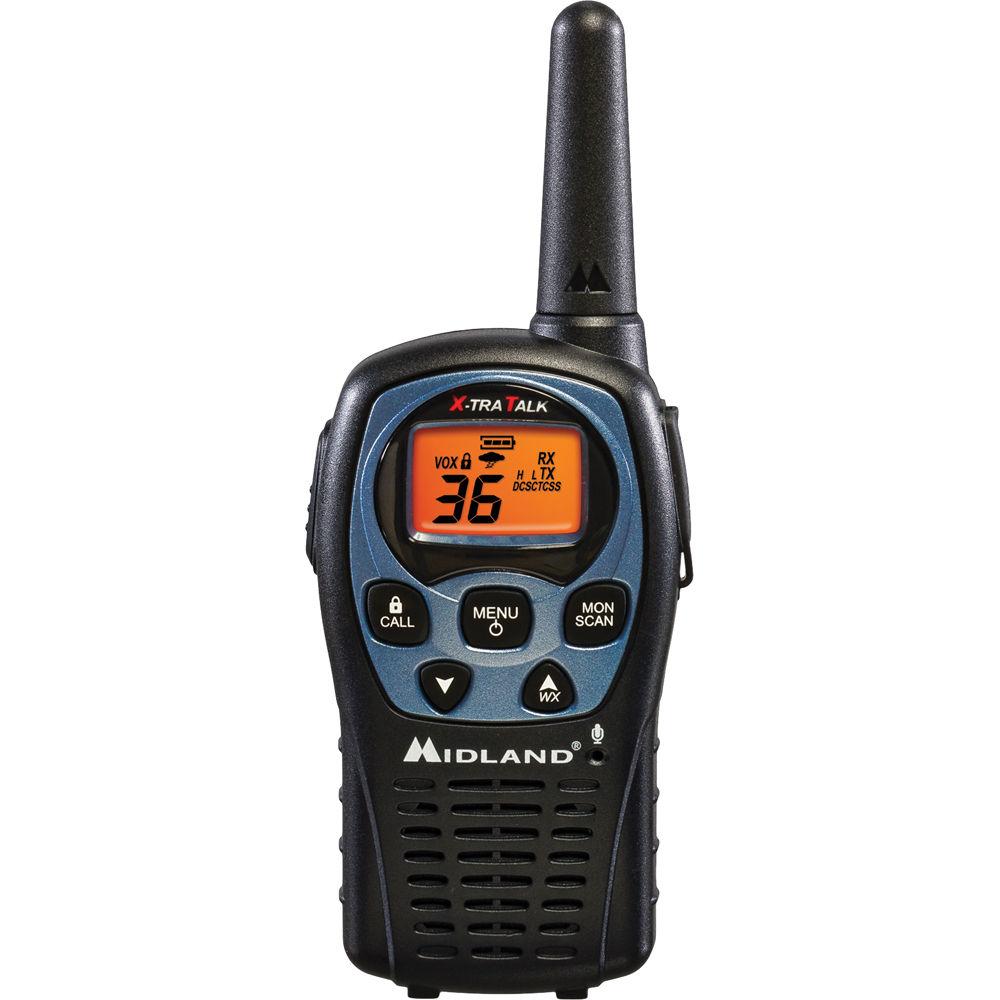

Product description The 36-Channel FRS/GMRS 2-Way Radio Set (Pair) by Midland Radio is a hybrid system that offers a combination of GMRS (General Mobile Radio Service) and FRS (Family Radio Service) channels. The former require an FCC license to use, but the latter are open to the general public.
The radios have a range of up to 26 miles, and can operate at even longer distances in areas without significant obstructions. There are 121 privacy codes available for use on channels 1-22. Channels 23-36 are what Midland calls "Extra Channels," which are repeats of previous channels (8 GMRS and 4 FRS channels are repeated) and have fixed privacy codes. As long as the privacy codes are set differently between a primary channel and its corresponding repeat channel, they can both be used simultaneously for separate conversations within the same area.
Other key features include Auto Squelch, for reducing background noise, and Channel Scan, which helps you locate channel activity. Three levels of hands-free, voice-activated operation are supported via the eVox feature.
If you're using the radios outdoors, you'll appreciate their ability to scan NOAA Weather Alert Radio and lock on to the conditions and alerts for your local area. The Hi/Lo Power Settings option lets you choose between two transmission power settings. Using the lower setting when the higher one isn't needed allows you to conserve batter life.

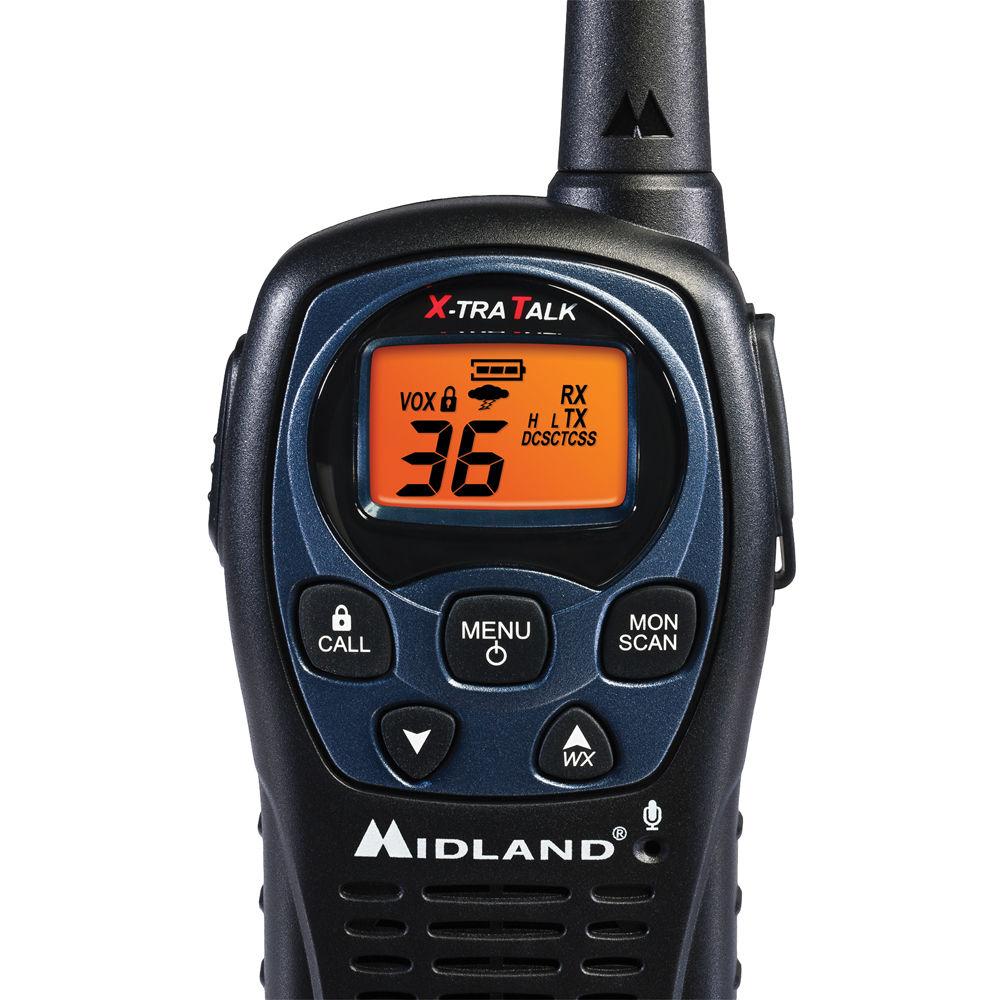

Because of their water-resistant design, the radios can withstand light water exposure without sustaining damage. Each radio has a backlit LCD display, which is visible in all types of lighting conditions.

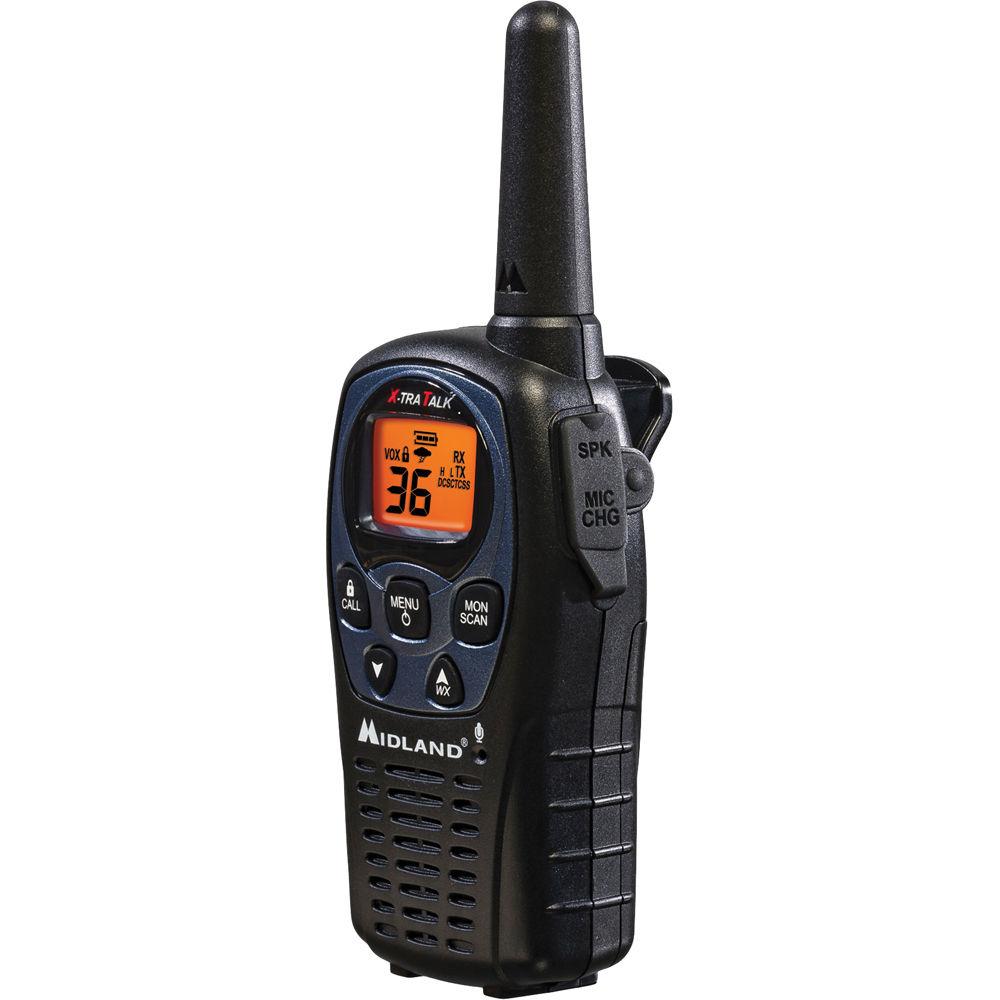

Each radio comes with a battery pack, but can also run off of 4 AAA batteries (not included). The included dual desktop charger lets you charge both radios at once. Built in mic and headphone jacks on the radios allowing you to utilize compatible peripherals. You can integrate these radios with other FRS/GMRS two-way units, allowing you to expand an existing system. - Channels
- 22 Channels plus 14 extra channels: Clear, crisp communication with easy button access
- Up to 26 Mile Range
- Longer range communication in open areas with little or no obstruction
(Maximum range can only be achieved over water or open rural areas under optimum conditions. FCC license required.) - 121 Privacy Codes
- Gives you up to 2662 channel options to help you block other conversations
- NOAA Weather Alert Radio with Weather Scan
- Automatically locks onto your local weather channel and alerts you to severe weather
- Channel Scan
- Automatically checks channels for activity
- Hi/Lo Power Settings
- Lets you adjust transmit power and conserve battery life
- Hands-Free Operation
- eVOX with 3 sensitivity levels and easy voice activation
- Silent Operation
- Turns off all tones for quiet operation
- 5 Call Alerts
- Different call tones to notify you of incoming calls from your group
- Auto Squelch
- Removes annoying background noise
- Keypad Lock
- Prevents accidental activation of function/mode keys
- Monitor
- Checks for any activity within your channel
- Water Resistant
- Prevents damage from light water exposure
- Roger Beep
- Indicates call completion
- Bright Backlit Display [LCD]
- Easy to read day or night
- Keystroke Tones
- Audible tones with each key press
- Connectors
- Mic and headphone jacks
- Power
- Battery-life extender
Drop-In Charger Capable - Auto Squelch
- Removes annoying background noise
UPC: 046014505605 In the Box Midland 36-Channel FRS/GMRS 2-Way Radio Set (Pair) 2 x Radios 2 x Belt Clips Dual Desktop Charger AC Adapter for Charger 2 x Rechargeable Battery Packs Warranty: 3-Years on Radio
90 Days on Accessories Manual PDF 1.3mbvtrvrwsr Table of Contents
|
Upload User Manual
Have you got an user manual for the Midland 36-Channel FRS GMRS 2-Way Radio Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidland LXT560VP3 Specs | Channels | 36 FRS and GMRS | | Frequency Band | 462.550 ~ 467.7125 MHz | | Weather Frequency | 162.400 - 163.275 MHz | | VOX Levels | 3 | | Privacy Codes | 38 CTCSS, 83 DCS | | RoHS Compliant | Yes | | Power Requirement | 4 x AAA | | Display Type | Backlit LCD | | Display Size | 0.88 x 0.75" (22.4 x 19.1 mm) | | Operating Temperature Range | -22 to 140° F (-30 to 60° C) | | FCC Regulations | Part 95 | | Dimensions (H x W x D) | 6 x 2.25 x 1.75" (152.4 x 57.2 x 44.5mm) | | Weight | 3.2 oz (90.7 g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.5 x 9.3 x 3.3" |
