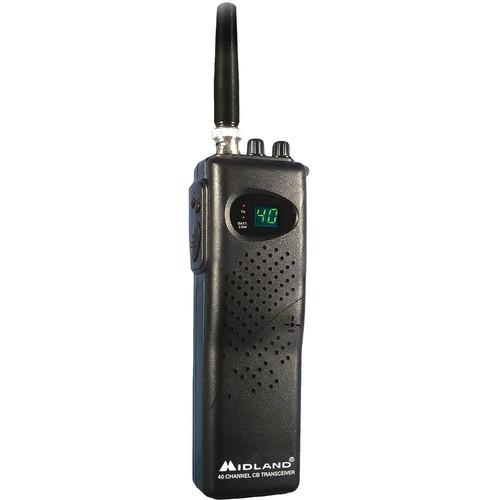

User Manual for Midland 75-785 40-Channel Handheld CB Radio Click to enlarge the picture
Contents of the user manual for the Midland 75-785 40-Channel Handheld CB Radio
- Product category: 2-Way Radios Midland
- Brand: Midland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midland 2-Way Radios
|
User manual for the Midland 75-785 40-Channel Handheld CB Radio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midland product will considerably shorten its lifespan!
|
Product description Designed for mobility, the 75-785 40-Channel Handheld CB Radio from Midland is a compact 40-channel Citizen Band radio featuring an easy-to-read LCD display. This 4W radio has two knobs for quick adjustments of volume and squelch control, as well as channel up and down buttons.
This CB radio features a Phase Locked Loop (PLL) synthesizer circuit, resulting in tighter frequency control and increased reliability. The built-in PTT electret condenser microphone is easy to use, while an external speaker (available separately) can be connected to override the built-in speaker. - 40-channel CB radio with push-to-talk microphone and built-in speaker
- LCD display for easy visibility
- Squelch control knob reduces background noise
- Automatic Gain Control (AGC) for a constant sound level
- Ceramic filter reduces adjacent channel interference and provides channel selectivity
- Automatic modulation control for a constant audio transmission modulation level
- Low-distortion IC audio circuit and Automatic Noise Limiter (ANL) to reduce pulse noise
- Removable antenna with BNC connector
- External speaker and microphone jacks
- HI-LO switch adjusts output power
- Battery operated (batteries available separately) with 12 VDC power option (adapter is included)
UPC: 046014757851 In the Box Midland 75-785 40-Channel Handheld CB Radio 12 VDC Adapter Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midland 75-785 40-Channel Handheld CB Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidland 75785 Specs | | | Receiving System | Superheterodyne with double conversion | | Intermediate Frequency (IF) | First: 10.965 MHz
Second: 455 kHz | | Sensitivity | At 10 dB S/N: < 1 uV | | Audio Output Power | 0.5 W at 8 Ohms (10% distortion) | | Audio Distortion | At 1 kHz: < 8% | | Image Rejection | 65 dB | | Selectivity | 65 dB | | Signal to Noise Ratio | 45 dB | | RX Current Consumption | 60 mA | | | | RF Output Power | 4 W at 13.8 VDC | | Modulation | 85 to 95% | | Audio Frequency Response | 400 Hz to 2.5 kHz | | Frequency Tolerance | 0.005% | | Harmonic Suppression | > 70 dB | | Current Consumption | 900 mAh, without modulation | | | | Channels | 40 | | Frequency Range | 26.965 to 27.405 MHz | | Modulation | AM | | Frequency Control | PLL | | Temperature Range | 14 to 131°F (-10 to 55°C) | | Loudspeaker | 8 Ohms, 0.5 W | | Microphone | Electret condenser | | Speaker | Built-in speaker | | Connectors | BNC (antenna), external speaker jack, external microphone jack | | Power Supply | 9 x AA batteries (available separately)
Nominal: 13.8 VDC
10.9 to 15.6 VDC | | Dimensions | 2.2 x 7.0 x 1.8" (5.5 x 18.0 x 4.5 cm) | | Weight | 0.6 lb (0.3 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.9 x 3.9 x 2.5" |
