User Manual for Midland GXT1050VP4 2-Way Compact Communication Radio Click to enlarge the picture
Contents of the user manual for the Midland GXT1050VP4 2-Way Compact Communication Radio
- Product category: 2-Way Radios Midland
- Brand: Midland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midland 2-Way Radios
 |
User manual for the Midland GXT1050VP4 2-Way Compact Communication Radio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midland product will considerably shorten its lifespan!
|
Product description The GXT1050VP4 2-Way Compact Communication Radio (Pair) from Midland is a feature-packed and convenient way to stay in touch on family outings, at amusement parks, during group sports, camping, and much more. Each radio has 22 selectable standard channels, plus 28 extra channels for additional privacy. The system offers up to 36 miles of wireless range in open areas. A channel scan feature automatically checks channels for activity, ensuring that you're on an open channel for clear communication. A dual watch monitoring feature will check for any activity on 2 channels. There are 284 privacy codes, giving you up to 5560 channel options to block other conversations.
The radio has a weather scan function that scans the active weather channel in your area. It also has an automatic NOAA alert for severe weather hazard information 24/7. An SOS siren is provided, allowing you to send a distress/locator signal in an emergency. An auto squelch feature removes annoying background noise for clear communication. A direct call feature lets you contact one member of your party without alerting others. Call alert has 10 different call tones to notify you of an incoming call within your group. The keypad is lockable to keep your selected settings. The silent operation mode turns off all tones for quiet, unobtrusive operation. High, medium, and low power settings let you adjust the radio's transmit power to conserve battery life.
An eVOX mode with 9 sensitivity levels provides easy voice activation for hands-free transmission only when you speak. The radio has a JIS4 waterproof rating to protect against light rain or splashing water from all directions. Mic and headphone jacks are provided, allowing you to use the radios with the included single-ear headsets. Each radio can operate on the included rechargeable batteries, or on 4 standard AA batteries (sold separately). The included desktop charger and AC adapter allow you to charge both radios via a single wall outlet, while the DC adapter lets you charge a radio in a vehicle. Note: Maximum range can only be achieved over water or open rural areas under optimum conditions. FCC license required. Features and specifications subject to change without notice. - Compact and versatile pair of radios for 2-way outdoor communication
- Mossy oak breakup camouflage coloring
- Up to 36 miles of wireless range in open areas
- Each radio has 50 (22 plus 28 extra) selectable channels and a channel scan feature that automatically checks channels for activity, ensuring that you're on an open channel for clear communication
- Monitor function checks for any activity within your channel. A dual watch function lets you monitor 2 channels
- 284 privacy codes give you up to 5560 channel options to help you block other conversations

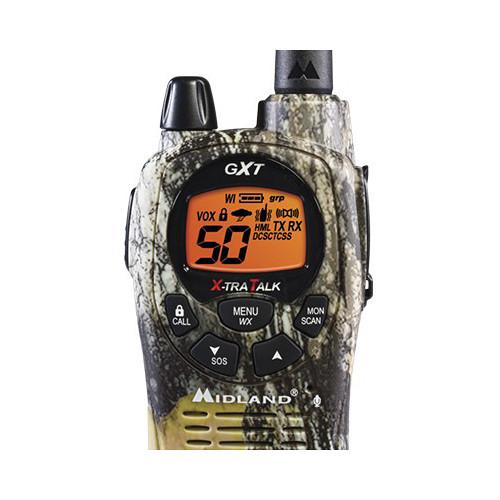

- Bright backlit LCD display for use during the day or night
- SOS siren lets you send distress/locator signals in emergency situations
- Weather scan checks the active weather channel in your area. NOAA is also included for automatic alerts for severe weather hazard information 24/7
- JIS4 waterproof rating provides protection against light rain or splashing water from all directions
- X-TRA TALK power is the maximum allowed by law, ensuring maximum range and clear communication
- Whisper mode lets you whisper, but the receiving radio hears you at full volume
- Auto squelch feature removes annoying background noise
- A "roger" beep indicates call completion
- Keystroke tones provide audible tones with each key press, while silent operation mode silences all tones for quiet operation
- A direct call function lets you instantly contact one member of your party without alerting others. The call alert function has 10 different tones to notify you of an incoming call from within your group
- The vibrate alert provides silent page and call notifications
- The keypad is lockable to keep your selected settings
- The eVOX mode has 9 sensitivity levels for easy voice activation without an external microphone
- High, medium, and low power settings let you adjust transmit power to conserve battery life
- Mic and headphone jacks are provided, allowing you to use the radios hands-free with the included single-ear headsets
- Battery life extender provides longer operating life
- Each radio can operate on the included rechargeable batteries or via 4 standard AA batteries. The included drop-in desktop charger and AC adapter provide a convenient way to charge both radios simultaneously with a single AC outlet, while the DC adapter lets you charge a radio using your car's lighter socket

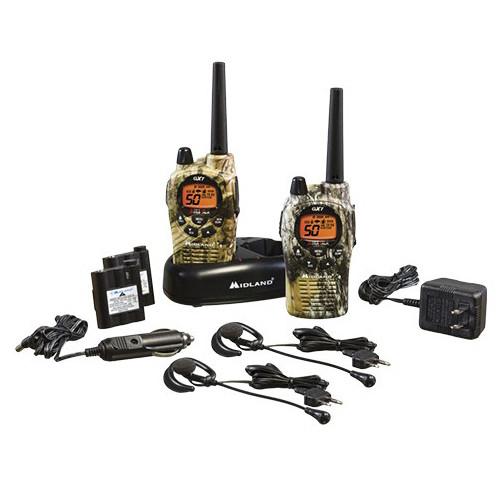

UPC: 046014510500 In the Box Midland GXT1050VP4 2-Way Compact Communication Radio (Pair) AC Adapter Desktop Charger DC Adapter 2 x Rechargeable Battery Packs 2 x Boom Mic Headsets 2 x Belt Clips 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midland GXT1050VP4 2-Way Compact Communication Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidland GXT1050VP4 Specs | Channels | 50, FRS and GMRS | | Frequency Band | 462.550 - 467.7125MHz | | Privacy Codes | 38 CTCSS, 104 DCS | | Weather Alert | 162.400 - 163.275MHz | | VOX | 9 Levels | | Display | 1.25 x 0.875" (32 x 22mm) Backlit LCD (WxH) | | Power | Rechargeable Battery Pack
4 x AA Batteries (Sold Separately) | | Environmental | Operating Temp: -22 to 140°F (-30 to 60°C) | | Certifications | FCC Certification, Part 95
RoHS Compliant | | Dimensions (HxWxD) | 9.75 x 2.5 x 1.75" (248 x 64 x 44mm) (Each Radio) | | Weight | 4.8 oz (136g) (Each Radio) | | | | Package Weight | 1.88 lb | | Box Dimensions (LxWxH) | 11.9 x 9.3 x 3.35" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
