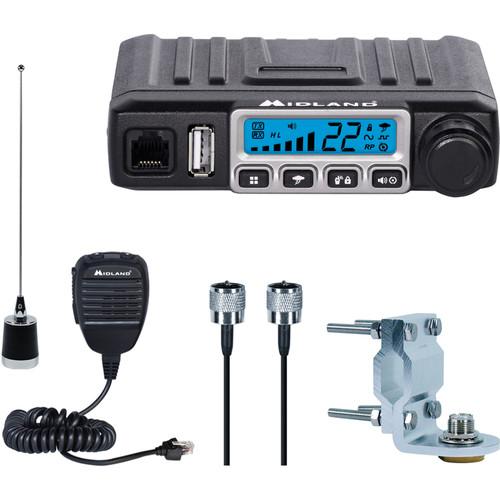

Product description The MXT115VP3 Bundle from Midland includes the MicroMobile MXT115 15-channel GMRS radio, MXTA10 3 dB gain antenna, a mounting bracket, and 20' antenna cable. The antenna doubles the radio's power while the cable and roll bar mount allow the operator to secure the antenna to ATVs, UTVs, and other off-road vehicles. - MicroMobile MXT115 15-Channel Two-Way GMRS Radio Designed to be used in your car, truck, RV, or UTV, the MicroMobile MXT115 15-Channel Two-Way GMRS Radio includes a push-to-talk microphone and built-in speaker, as well as a detachable antenna with magnetic mount. Intended for mounting either under the dash or vertically on the center console, the radio comes with a mounting bracket for quick installation and can either be hardwired to the vehicle's electrical system or via the included 12 VDC adapter. An external speaker jack in the rear of the unit allows you to attach an external speaker (available separately).
The MXT115 features 15 GMRS channels and transmits using up to 15W of power via an adjustable power switch (Hi/Lo). 142 privacy codes allow you to secure any channel, while monitor mode lets you keep an ear on a selected channel. This radio offers NOAA weather radio functionality and a scanning feature to quickly scan all 10 weather channels to find an active one. To increase transmission distance, the radio features eight selectable repeater channels (channels 15-22). The backlit LCD screen allows for use even in low-light conditions, and the on/off knob provides a quick and easy way to adjust the volume. - 15-channel GMRS radio with push-to-talk microphone
- Weather scan technology locks onto the strongest station for accurate weather reports
- Uses National Oceanic and Atmospheric Administration (NOAA) national weather service
- USB charging port in front to charge mobile devices
- On/off knob with volume control
- Color-adjustable backlit LCD display for easy visibility
- Squelch control reduces background noise
- Monitor function, keypad lock, adjustable power, roger beep, and call alert tone
- Push-to-talk microphone included
- Built-in speaker and external speaker jack
- Operates on UHF band frequencies and is compatible with other UHF radios with the same channels
UPC: 046014509153 - Gain Antenna for MicroMobile 2-Way Radio (3 dB)
- Key Features
-
- Antenna increases signal output
- Complete with load coil, chrome collinear rod and NMO connector
UPC: 046014185203 - MicroMobile Antenna Mounting Bracket with Connector
- Antenna Cable for MicroMobile Two-Way Radios (20')
In the Box Bundle Items MicroMobile MXT115 15-Channel Two-Way GMRS Radio cxvyudtasvbqsrbdtctr - Flip-Frame Mounting Bracket
- Detachable Antenna with Magnetic Mount
- Microphone Mounting Bracket
Gain Antenna for MicroMobile 2-Way Radio (3 dB) cxvyudtasvbqsrbdtctr MicroMobile Antenna Mounting Bracket with Connector Antenna Cable for MicroMobile Two-Way Radios (20') Table of Contents
|
Upload User Manual
Have you got an user manual for the Midland MXT115VP3 MicroMobile 15-Channel GMRS Radio & 3 dB Antenna System Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MicroMobile MXT115 15-Channel Two-Way GMRS Radio
| Channels | 15 GMRS, 8 repeaters | | Operating Frequency Range | GMRS Band: UHF, 462.550 to 462.725 MHz
Repeater: UHF, 467.550 to 467.725 MHz
WX Band: 162.550 to 163.275 MHz | | Privacy Codes | 142 | | Weather Channels | 10 NOAA | | Antenna | Magnetic mount
Cable Length: 19.7' (6 m) | | Connectivity | RJ11 for microphone
3.5 mm jack for external speaker (available separately)
SO-239 antenna jack
USB charging port | | External Speaker | 4 W, 8 Ohms | | Output Power | 15 W | | Power Connector | 2-pin 13.8 VDC jack for 12 VDC power | | Power Requirements | 12 VDC negatively grounded system
Hardwired to vehicle's electrical system | | Compliance | 47 CFR Part 2 Sub-Part J, ANSI/IEEE C95. 1-1992, IEEE C95. 1-1999 Edition, NCRP Report 86 1986, ICNIRP 1998 | | | | Box Dimensions (LxWxH) | 10.1 x 9.6 x 2.3" | - Gain Antenna for MicroMobile 2-Way Radio (3 dB)
| | | Product Type | Antenna | | Form Factor | Rod | | Intended For | Two-way radio | | Color | Black/silver | | Product Material | Stainless steel | | | | Frequency Range | 462 MHz | | Gain | 3 dBi | | Max Power | 120 Watt | | Directivity | Omni-directional | | | | Box Dimensions (LxWxH) | 14.8 x 1.3 x 0.6" | - MicroMobile Antenna Mounting Bracket with Connector
| | | Box Dimensions (LxWxH) | 3.1 x 3.1 x 1.7" | - Antenna Cable for MicroMobile Two-Way Radios (20')
| | | Cable Type | Antenna cable | | Length | 19.7 ft | | | | Box Dimensions (LxWxH) | 8.5 x 3.3 x 0.8" |
