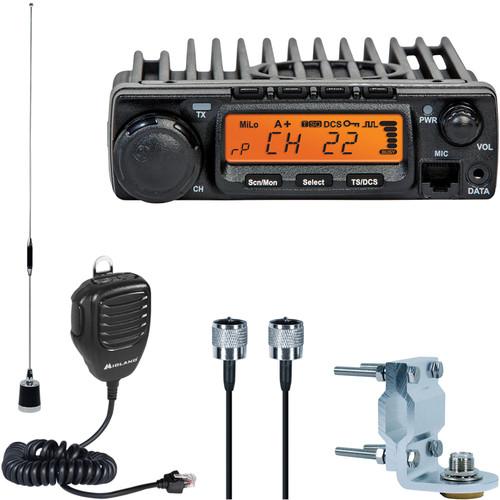

User Manual for Midland MXT400VP3 Bundle with MXT400 MicroMobile Radio & MXTA11 6 dB Antenna Click to enlarge the picture
Contents of the user manual for the Midland MXT400VP3 Bundle with MXT400 MicroMobile
- Product category: 2-Way Radios Midland
- Brand: Midland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midland 2-Way Radios
|
User manual for the Midland MXT400VP3 Bundle with MXT400 MicroMobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midland product will considerably shorten its lifespan!
|
Product description The MXT400VP3 Bundle from Midland features the MXT400 MicroMobile 15-channel two-way radio, MXTA6 antenna mounting bracket, MXTA8 20' antenna cord, and MXTA11 6 dB gain antenna. The 40 W GMRS radio includes a push-to-talk microphone and built-in speaker, and can be mounted either under the dash or vertically on the center console of your vehicle. The stainless-steel MXTA11 antenna quadruples the signal strength of the MicroMobile radio. - MicroMobile MXT400 15-Channel Two-Way GMRS Radio Designed to be used in your car, truck, RV, or UTV, the MicroMobile MXT400 15-Channel Two-Way GMRS Radio includes a push-to-talk microphone and built-in speaker. Intended for mounting either under the dash or vertically on the center console, the radio comes with a mounting bracket for quick installation and can either be hardwired to the vehicle's electrical system or via the included 12 VDC adapter. An external speaker jack in the rear of the unit allows you to attach an external speaker (available separately).
The MXT400 features 15 GMRS channels and transmits using up to 40W of power via an adjustable power switch (Hi/Mi/Lo). 142 privacy codes allow you to secure any channel, while monitor mode lets you keep an ear on a selected channel. To increase transmission distance, the radio features eight selectable repeater channels (channels 15-22). The backlit LCD screen allows for use even in low-light conditions, and the front knobs provide a quick and easy way to adjust the volume and channel. - 15-channel GMRS radio with push-to-talk microphone
- Time Out Timer (TOT) function limits the transmission time of each PTT activation
- Auto Power-Off (APO) function shuts the radio off after a predetermined amount of idle time
- Backlit LCD display for easy visibility
- Squelch control and Voice Compander Function help reduce background noise
- Transmit (TX) function allows you to disable the transmitter section of the radio to use the radio as only a receiver unit
- Talk Around (Talk) function allows you to communicate directly with radios (available separately) in your group when the repeater is not activated or out of range
- Monitor function, keypad lock, adjustable power, and call alert tone
- Built-in speaker and external speaker jack
- Operates on UHF band frequencies and is compatible with other UHF radios with the same channels
UPC: 046014509405 - Gain Antenna for MicroMobile 2-Way Radio (6 dB) Provided by third party: This antenna quadruples the signal strength of your MicroMobile two-way radio. It features stainless steel construction so it can handle the elements.
UPC: 046014185210 - MicroMobile Antenna Mounting Bracket with Connector
- Antenna Cable for MicroMobile Two-Way Radios (20')
In the Box Bundle Items MicroMobile MXT400 15-Channel Two-Way GMRS Radio - Flip-Frame Mounting Bracket
- Microphone Mounting Bracket
MicroMobile Antenna Mounting Bracket with Connector fwtyqrtyvvfzbvvubzevqxusbftxerd Antenna Cable for MicroMobile Two-Way Radios (20') Gain Antenna for MicroMobile 2-Way Radio (6 dB) Table of Contents
|
Upload User Manual
Have you got an user manual for the Midland MXT400VP3 Bundle with MXT400 MicroMobile Radio & MXTA11 6 dB Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MicroMobile MXT400 15-Channel Two-Way GMRS Radio
| Channels | 15 GMRS, 8 repeaters | | Operating Frequency Range | GMRS Band: UHF, 462.550 to 462.725 MHz
Repeater: UHF, 467.550 to 467.725 MHz | | Privacy Codes | 142 | | Connectivity | RJ11 for microphone
3.5 mm jack for external speaker (available separately)
SO-239 antenna jack for external antenna (available separately) | | External Speaker | 4 W, 8 Ohms | | Output Power | 40 W | | Power Connector | 2-pin 13.8 VDC jack for 12 VDC power | | Power Requirements | 12 VDC negatively grounded system
Hardwired to vehicle's electrical system | | Compliance | 47 CFR Part 2 Sub-Part J, ANSI/IEEE C95. 1-1992, IEEE C95. 1-1999 Edition, NCRP Report 86 1986, ICNIRP 1998 | | | | Box Dimensions (LxWxH) | 9.0 x 6.9 x 4.3" | - MicroMobile Antenna Mounting Bracket with Connector
| | | Box Dimensions (LxWxH) | 3.1 x 3.1 x 1.7" | - Antenna Cable for MicroMobile Two-Way Radios (20')
| | | Cable Type | Antenna cable | | Length | 19.7 ft | | | | Box Dimensions (LxWxH) | 8.5 x 3.3 x 0.8" | - Gain Antenna for MicroMobile 2-Way Radio (6 dB)
| | | Product Type | Antenna | | Form Factor | Rod | | Intended For | Two-way radio | | Length / Max Length | 2.3 ft | | Product Material | Stainless steel | | | | Antenna Length | 27 in | | Gain | 6 dBi | | Max Power | 120 Watt | | Directivity | Omni-directional | | | | Box Dimensions (LxWxH) | 4.15 x 3.95 x 1.55" |
