User Manual for Midland X-Talker T61VP3 36-Channel Two-Way UHF Radio Click to enlarge the picture
Contents of the user manual for the Midland X-Talker T61VP3 36-Channel Two-Way UHF
- Product category: 2-Way Radios Midland
- Brand: Midland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midland 2-Way Radios
 |
User manual for the Midland X-Talker T61VP3 36-Channel Two-Way UHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midland product will considerably shorten its lifespan!
|

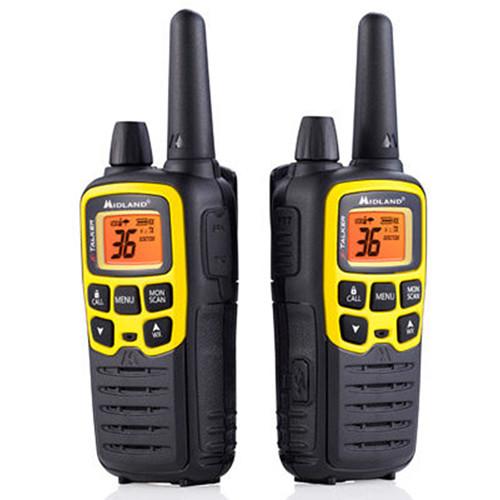

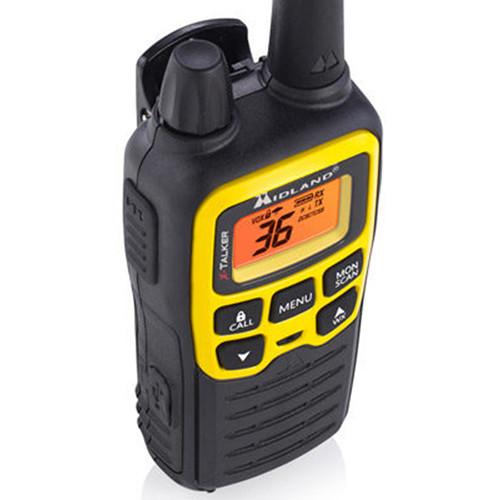

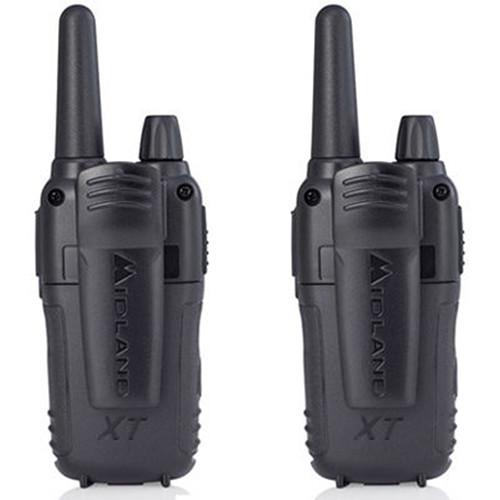

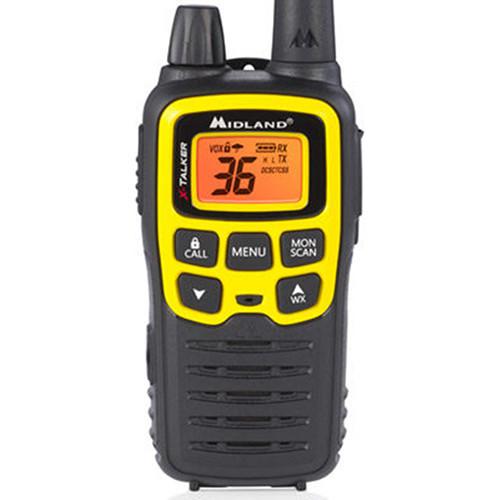

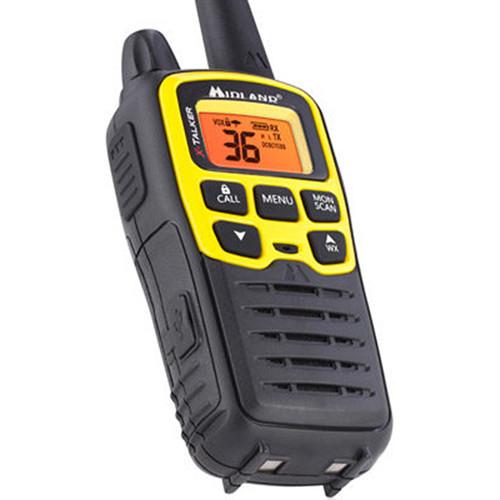

Product description This pair of yellow and black X-Talker T61VP3 36-Channel Two-Way UHF Radios from Midland are 36-channel radios designed to provide quick communication. Each radio has a knob and buttons for easy adjustments of volume, channel selection, menu, and more. The monitor button allows you to quickly adjust incoming transmission volume, while the scan button rapidly scans all channels for incoming transmissions, stopping at the first channel for six seconds with a current transmission before continuing to scan. With this radio, users can also take advantage of CTCSS (Continuous Tone-Coded Squelch System) and DCS (Digital-Coded Squelch) to communicate privately using one of the 121 privacy codes. Two rechargeable 700mAh battery packs and a drop-in charging station are included to conveniently charge both radios simultaneously. Note: An FCC (Federal Communications Commission) license is required for use of this radio (available separately). - 121 privacy codes (38 CTCSS and 83 DCS)
- Up to 32-mile transmission range
- 10-channel NOAA weather radio with weather alerts
- Backlit LCD provides easy visibility
- Monitor and scan functions
- Roger beep tone, silent operation, and keypad lock
- Call alert and 9-level VOX functionality
- Five selectable call alerts
- Battery meter and battery low indicator
- Rechargeable battery packs included
- Drop-in charger included to charge both radios simultaneously
- Built-in push-to-talk microphone and speaker

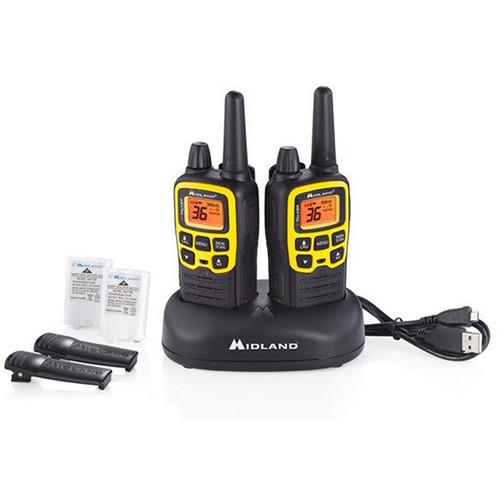

UPC: 046014511613 In the Box Midland X-Talker T61VP3 36-Channel Two-Way UHF Radio (Yellow, Pair) 2 x Rechargeable Battery Packs Desktop Charger 2 x Belt Clips Micro-USB Charging Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midland X-Talker T61VP3 36-Channel Two-Way UHF Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidland T61VP3 Specs | Band | UHF | | Channels | 36 | | Frequencies | UHF: 462.5500 to 467.7125 MHz
NOAA Weather Radio: 162.550 to 163.275 | | Privacy Codes | 121 (38 CTCSS and 83 DCS) | | Range | Up to 32 miles (51.5 km) | | Microphone/Speaker | Built-in | | Connectors | External microphone jack
External speaker jack
Micro-USB port | | Buttons | Power/volume knob, PTT, call/lock, menu, monitor/scan, up/WX, down | | Display | Backlit LCD | | Power | Rechargeable battery pack
3 x AAA batteries (available separately) | | Battery Capacity | 700 mAh | | Charger | Drop-in charger | | Antenna | Screw-on | | Dimensions | 6.1 x 2.2 x 1.3" (15.5 x 5.6 x 3.3 cm) | | Weight | 5 oz (141.7 g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 11.6 x 7.7 x 2.2" |
