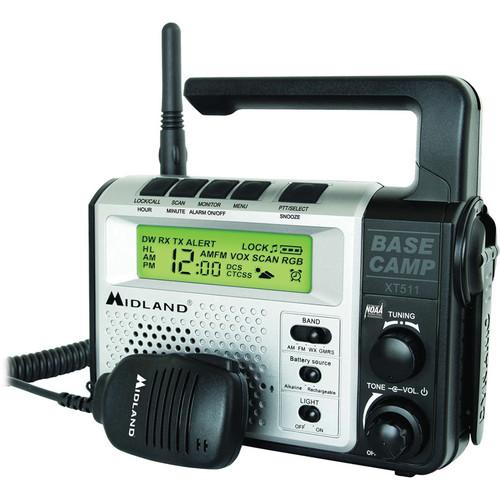

User Manual for Midland XT511 Base Camp 2-Way Communication Radio with Crank Click to enlarge the picture
Contents of the user manual for the Midland XT511 Base Camp 2-Way Communication
- Product category: 2-Way Radios Midland
- Brand: Midland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midland 2-Way Radios
|
User manual for the Midland XT511 Base Camp 2-Way Communication contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midland product will considerably shorten its lifespan!
|
Product description The XT511 Base Camp 2-Way Communication Radio with Crank from Midland is a feature-packed and convenient way to stay in touch on family outings, camping trips, and more. The radio has 22 selectable channels and a channel scan feature that automatically checks channels for activity, ensuring that you're on an open channel for clear communication. There are 121 privacy codes, giving you up to 3144 channel options to block other conversations. A dual watch feature lets you monitor 2 channels at once. An AM/FM radio lets you listen to broadcasts and music.
The radio has an automatic NOAA alert function that provides severe weather hazard information 24/7. An auto squelch feature removes annoying background noise for clear communication. Call alert has 5 different call tones to notify you of an incoming call within your group. The keypad is lockable to keep your selected settings. The silent operation mode turns off all tones for quiet, unobtrusive operation. High and low power settings let you adjust the radio's transmit power to conserve battery life.
An eVOX mode with 3 sensitivity levels provides easy voice activation for hands-free transmission only when you speak. The radio is water resistant to prevent damage from light water exposure. Mic and headphone jacks are provided, allowing you to use the the included hand mic and your favorite pair of headphones. The radio can operate on the included rechargeable battery pack or on 4 standard AA batteries (sold separately). The included AC adapter allows you to charge the radios via a wall outlet, while the DC adapter lets you charge the radio in a vehicle.
In emergency situations, you can use the radio's hand crank to recharge. Approximately 90 seconds of cranking at a rate of 2 cranks per second will provide approximately 1 hour of operating time. Other useful emergency features include a built-in flashlight, an alarm clock with snooze, and a USB connector for recharging your cell phone. Note: Maximum range can only be achieved over water or open rural areas under optimum conditions. FCC license required. Features and specifications subject to change without notice. - Compact radio for 2-way outdoor communication
- There are 22 selectable channels and a channel scan feature that automatically checks channels for activity, ensuring that you're on an open channel for clear communication
- 121 privacy codes give you up to 3144 channel options to help you block other conversations
- A monitor function lets you check for activity within your channel, while the dual watch feature lets you monitor 2 channels
- Bright backlit LCD display for use during the day or night
- NOAA weather alerts provide severe weather hazard information 24/7
- An AM/FM tuner lets you listen to broadcasts and music
- Auto squelch feature removes annoying background noise
- A "roger" beep indicates call completion
- Keystroke tones provide audible tones with each key press, while silent operation mode silences all tones for quiet operation
- The call alert function has 5 different tones to notify you of an incoming call from within your group
- The keypad is lockable to keep your selected settings
- The eVOX mode has 3 sensitivity levels for easy voice activation without an external microphone
- High and low power settings let you adjust transmit power to conserve battery life
- Mic and headphone jacks are provided, allowing you to use the radio with the included hand mic, as well as your favorite headphones
- A battery life extender function provides longer battery life
- The radio can operate on the included rechargeable battery pack or via 4 standard AA batteries. The included AC adapter provides a convenient way to charge the radio via a wall outlet, while the DC adapter lets you charge the radio using your car's lighter socket
- The built-in dynamo crank lets you recharge the radio when no batteries or electricity are available. Approximately 90 seconds of cranking at a rate of 2 cranks per second will provide approximately 1 hour of operating time
- Other useful emergency features include a built-in flashlight, an alarm clock with snooze, and a USB connector for recharging your cell phone
UPC: 046014745117 In the Box Midland XT511 Base Camp 2-Way Communication Radio with Crank AC Adapter DC Adapter Rechargeable Battery Pack Hand Mic Shoulder Strap 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midland XT511 Base Camp 2-Way Communication Radio with Crank in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidland XT511 Specs | Channels | 22 FRS/GMRS and 7 Weather | | Frequency Band | GMRS: 462.550 - 467.7125MHz
WX: 162.400 - 162.550MHz
AM: 530 - 1700kHz
FM: 87.9 - 108.1MHz | | Alert | 1050Hz Tone | | VOX | 3 Levels | | Display | 3.375 x 0.937" (86 x 24mm) Backlit LCD (WxH) | | Power | Rechargeable Battery Pack (Included)
4 x AA Batteries (Sold Separately)
5VDC via AC or DC Adapter (Included)
Hand Crank (Up to 1 Hour Operation from 90 Seconds of Crank Time @ 2 Cranks per Second) | | Environmental | Operating Temp: 50 to 122°F (10 to 50°C) | | Certifications | FCC Certification, Part 95
RoHS Compliant | | Dimensions (HxWxD) | 6.5 x 7.5 x 2.75" (165 x 191 x 70mm) | | Weight | 1.2 lbs (0.54kg) | | | | Package Weight | 2.545 lb | | Box Dimensions (LxWxH) | 13.4 x 10.4 x 3.75" |
